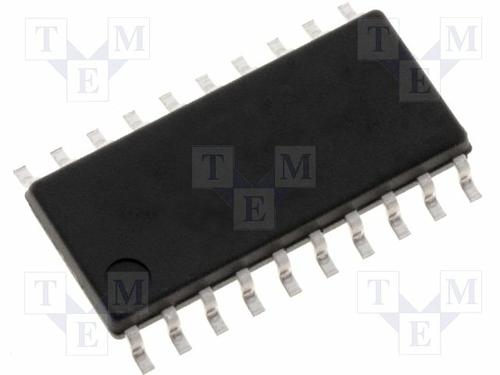

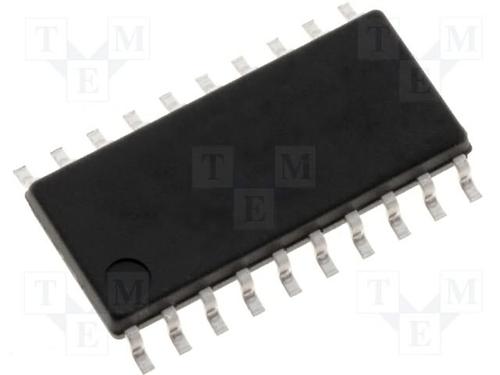

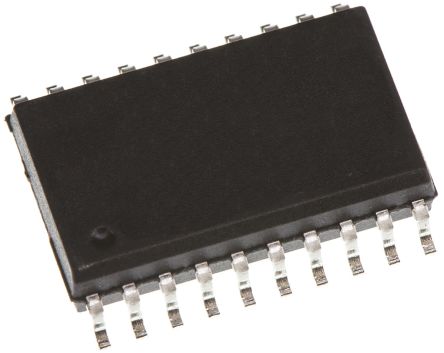

TEXAS INSTRUMENTS SN74HC574DW 触发器, 三态非反相, 正沿, D, 31 ns, 28 MHz, 7.8 mA, SOIC, 20 引脚
The is an octal edge-triggered D-type Flip-flop with 3-state outputs. It is designed specifically for bus driving. They are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers and working registers. The eight flip-flops enter data on the low-to-high transition of the clock CLK input. A buffered output-enable OE\\ input can be used to place the eight outputs in either a normal logic state high or low logic levels or the high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly. The high-impedance state and increased drive provide the capability to drive bus lines without interface or pull-up components. OE\ does not affect the internal operations of the flip-flops. Old data can be retained or new data can be entered while the outputs are in the high-impedance state.
频率 28 MHz
电源电压DC 2.00V ~ 6.00V
输出接口数 8
输出电流 7.8 mA
电路数 8
通道数 8
针脚数 20
时钟频率 36 MHz
位数 8
传送延迟时间 38.0 ns
极性 Non-Inverting
电压波节 6.00 V, 5.00 V, 2.00 V
逻辑门个数 8
输入电容 3 pF
输出电流驱动 -1.00 mA
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 20
封装 SOIC-20
长度 12.8 mm
宽度 7.52 mm
高度 2.35 mm
封装 SOIC-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 通信与网络, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74HC574DW TI 德州仪器 | 当前型号 | 当前型号 |
SN74HC574PW 德州仪器 | 完全替代 | SN74HC574DW和SN74HC574PW的区别 |
SN74HC574DWR 德州仪器 | 类似代替 | SN74HC574DW和SN74HC574DWR的区别 |
SN74HC574N 德州仪器 | 类似代替 | SN74HC574DW和SN74HC574N的区别 |
