双上升沿触发的D型触发器具有清零和预设 DUAL POSITIVE-EDGE-TRIGGERED D-TYPE FLIP-FLOPS WITH CLEAR AND PRESET
Are you looking to store information at a basic level? The flip flop device from Texas Instruments can easily save state information. It has a differential output signal. This flip flop has an operating temperature range of -40 °C to 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This inverting/non-inverting device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 5.5 V. It has 2 channels per chip.
频率 110 MHz
电源电压DC 2.00V ~ 5.50V
输出接口数 1
输出电流 8 mA
电路数 2
时钟频率 115 MHz
位数 2
传送延迟时间 10.5 ns
极性 Non-Inverting, Inverting
电压波节 5.00 V, 3.30 V
输入电容 2 pF
输出电流驱动 -1.00 mA
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 14

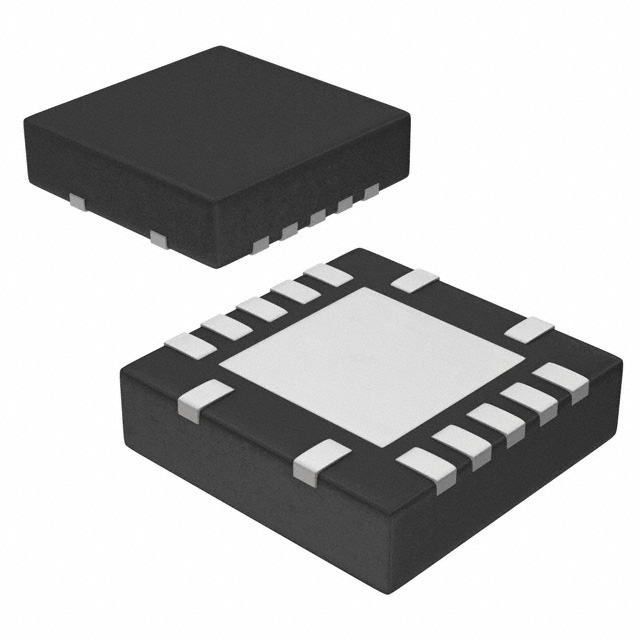

封装 VQFN-14
封装 VQFN-14
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74AHC74RGYR TI 德州仪器 | 当前型号 | 当前型号 |
SN74AHC74DR 德州仪器 | 完全替代 | SN74AHC74RGYR和SN74AHC74DR的区别 |
SN74AHC74D 德州仪器 | 完全替代 | SN74AHC74RGYR和SN74AHC74D的区别 |
SN74AHC74DGVR 德州仪器 | 类似代替 | SN74AHC74RGYR和SN74AHC74DGVR的区别 |
