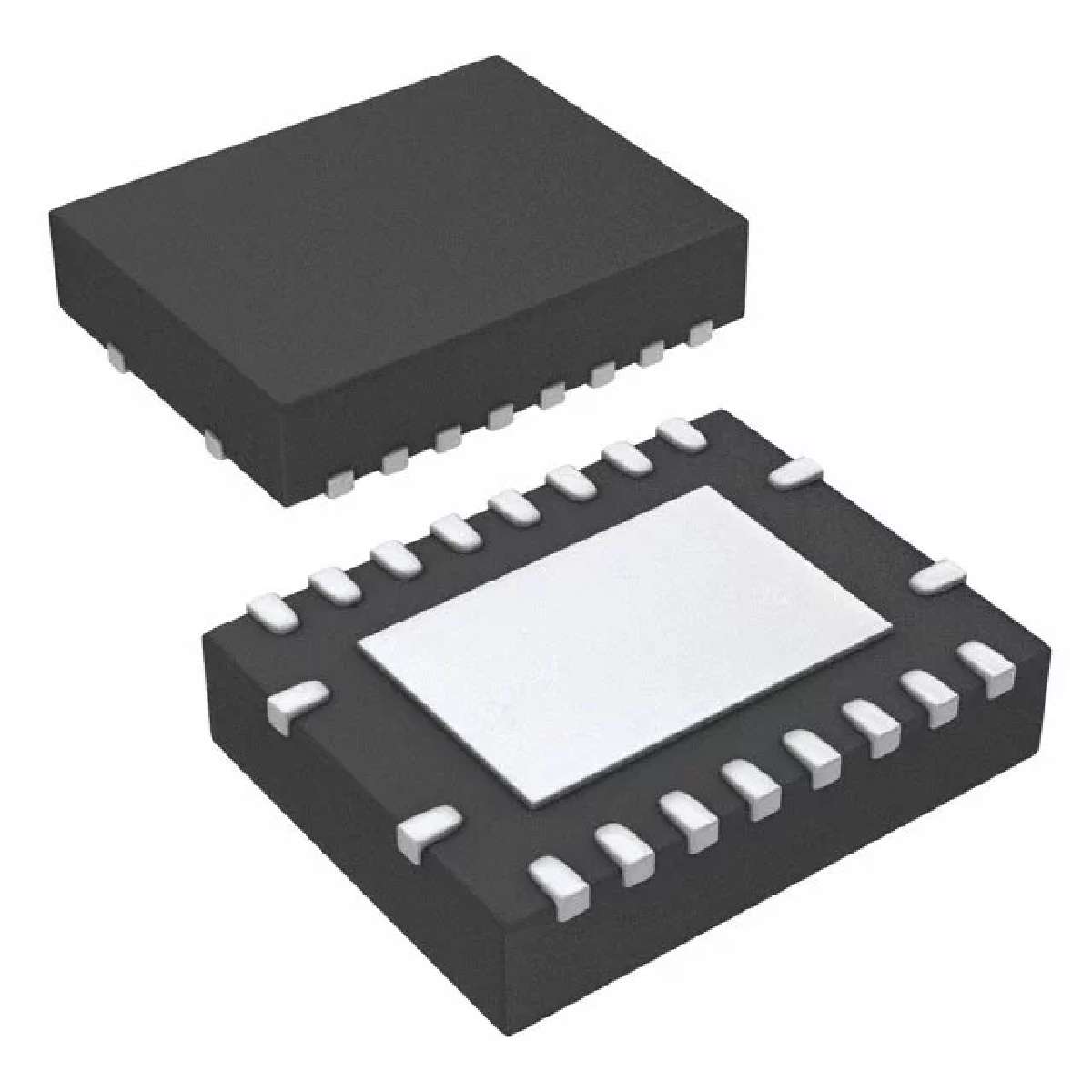

SN74LV273ARGYR

八路D型触发器与Clear OCTAL D-TYPE FLIP-FLOPS WITH CLEAR

Description

The SN74LV273A device is an octal D-type flip-flop designed for 2-V to 5.5-V VCC operation.

Features

• 2-V to 5.5-V VCC Operation

• Max tpd of 10.5 ns at 5 V

• Typical VOLP Output Ground Bounce

   < 0.8 V at VCC = 3.3 V, TA = 25°C

• Typical VOHV Output VOH Undershoot

   > 2.3 V at VCC = 3.3 V, TA = 25°C

• Ioff Supports Partial-Power-Down Mode Operation

• Supports Mixed-Mode Voltage Operation on All Ports

• Latch-Up Performance Exceeds 250 mA Per JESD 17

• ESD Protection Exceeds JESD 22

   – 3000-V Human-Body Model

   – 200-V Machine Model

   – 2000-V Charged-Device Model

Applications

• Power Sub-station Controls

• I/O Modules; Analog PLC/DCS Inputs

• Human Machine Interfaces HMI

• Flow Meters

• Patient Monitoring

• Test and Measurement Solutions
