八路透明D类锁存器具有三态输出 OCTAL TRANSPARENT D-TYPE LATCHES WITH 3-STATE OUTPUTS
Ideal for logic level devices this d-type low-level latch manufactured by Texas Instruments will meet your needs. With a 3-state output, this is power management at its best. This latch has an operating temperature range of -40 °C to 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This non-inverting device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 3.6 V. It has 8 channels per chip.
电源电压DC 2.00V ~ 3.60V
输出接口数 8
输出电流 24.0 mA
电路数 8
位数 8
传送延迟时间 7.50 ns
极性 Non-Inverting
电压波节 3.30 V, 2.70 V, 2.50 V, 1.80 V
输出电流驱动 -1.00 mA
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 3.6V
安装方式 Surface Mount

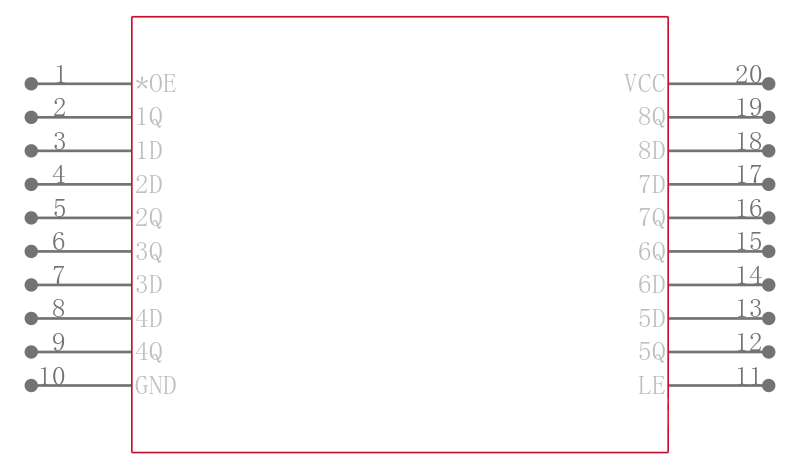

引脚数 20

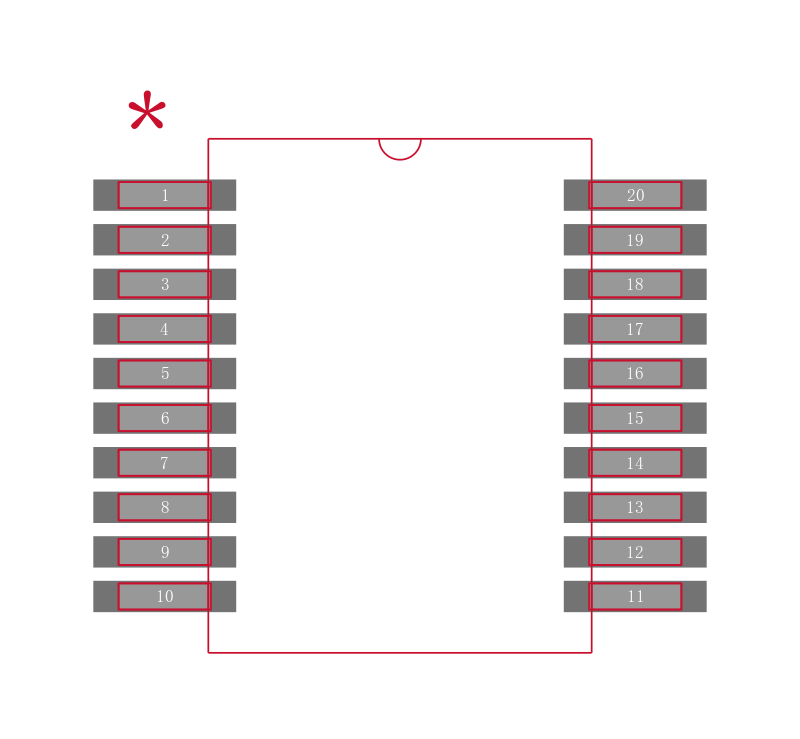

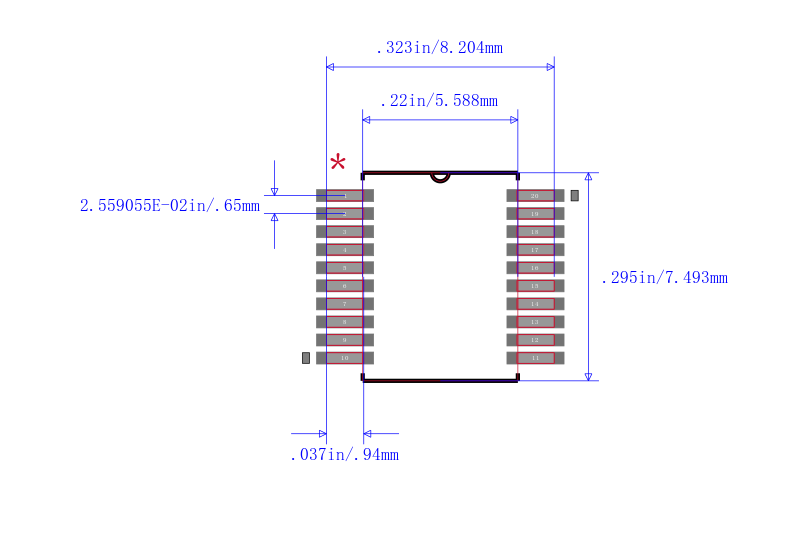

封装 SSOP-20
封装 SSOP-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LVC373ADBR TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVC373ADBRE4 德州仪器 | 完全替代 | SN74LVC373ADBR和SN74LVC373ADBRE4的区别 |
SN74LVC373AMDBREP 德州仪器 | 类似代替 | SN74LVC373ADBR和SN74LVC373AMDBREP的区别 |
V62/04662-02ZE 德州仪器 | 类似代替 | SN74LVC373ADBR和V62/04662-02ZE的区别 |
