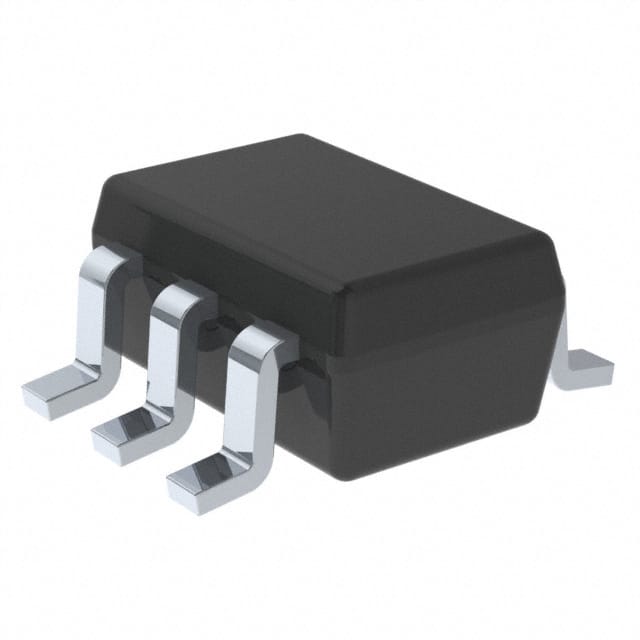

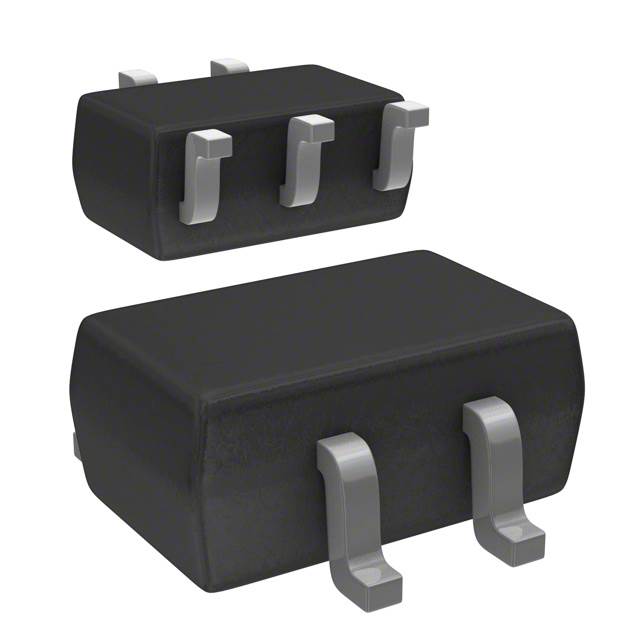

单电源电压电平转换与9个可配置门逻辑功能 SINGLE-SUPPLY VOLTAGE-LEVEL TRANSLATOR WITH NINE CONFIGURABLE GATE LOGIC FUNCTIONS
电压电平 转换器 单向 1 电路 1 通道 - SC-70-6
立创商城:
SN74AUP1T58DCKR
得捷:
IC TRNSLTR UNIDIRECTIONAL SC70-6
德州仪器TI:
Single-Supply Voltage Translator
艾睿:
The Texas Instruments SN74AUP1T58DCKR level translator can control and allow the proper input voltage into your electronic circuits. This level shifter has an operating temperature range of -40 °C to 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device has a typical operating supply voltage of 2.5|3.3 V. Its minimum operating supply voltage of 2.3 V, while its maximum is 3.6 V.
安富利:
Voltage Level Translator 6-Pin SC-70 T/R
Chip1Stop:
Voltage Level Translator 6-Pin SC-70 T/R
Verical:
Voltage Level Translator 1-CH Unidirectional 6-Pin SC-70 T/R
Newark:
# TEXAS INSTRUMENTS SN74AUP1T58DCKR Voltage Level Translator, AUP Family, 3 Input, 4 mA, 3.8 ns, 2.3 V to 3.6 V, SC-70-6
DeviceMart:
IC VOLT TRANSLATOR SNGL SC70-6
Win Source:
Voltage Level Translator Unidirectional 1 Circuit 1 Channel SC-70-6
电源电压DC 2.30V ~ 3.60V
输出接口数 1
输出电流 4 mA
电路数 1
通道数 1
位数 1
传送延迟时间 3.50 ns
电压波节 2.50 V, 3.30 V
输入数 3
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.3V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2.3 V
安装方式 Surface Mount
引脚数 6
封装 SC-70-6
封装 SC-70-6
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74AUP1T58DCKR TI 德州仪器 | 当前型号 | 当前型号 |
SN74AUP1T58DCKT 德州仪器 | 类似代替 | SN74AUP1T58DCKR和SN74AUP1T58DCKT的区别 |
SN74AUP1T58DCKRE4 德州仪器 | 类似代替 | SN74AUP1T58DCKR和SN74AUP1T58DCKRE4的区别 |
SN74AUP1T58DCKTE4 德州仪器 | 类似代替 | SN74AUP1T58DCKR和SN74AUP1T58DCKTE4的区别 |
