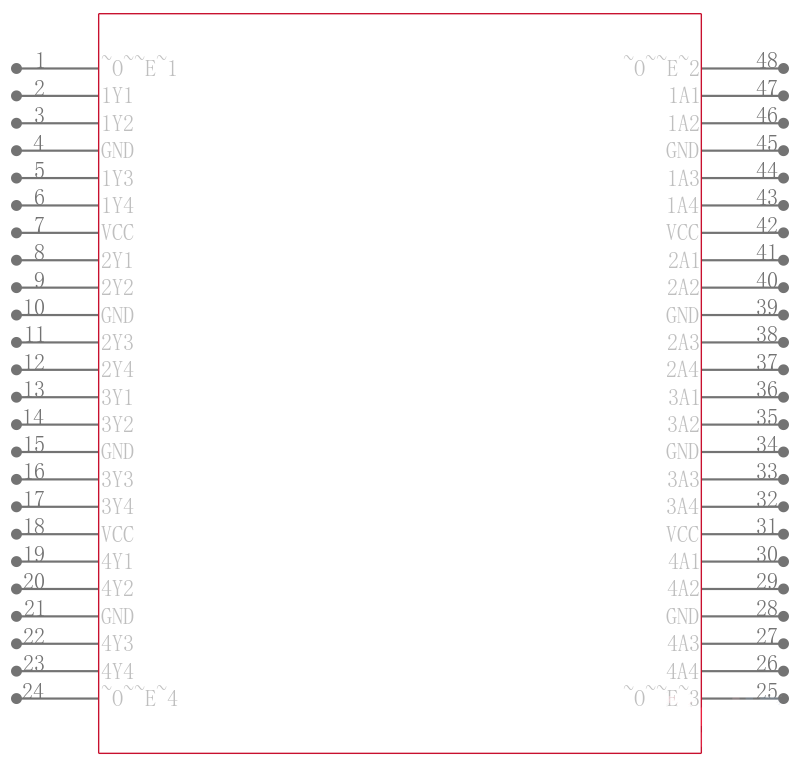

SN74LVTH16244ADLG4

3.3 -V ABT 16位缓冲器/驱动器，具有三态输出 3.3-V ABT 16-BIT BUFFERS/DRIVERS WITH 3-STATE OUTPUTS

DESCRIPON/ORDERING INFORMATION

The "LVTH16244A devices are 16-bit buffers and line drivers designed for low-voltage 3.3-V VCC operation, but with the capability to provide a TTL interface to a 5-V system environment. These devices can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. These devices provide true outputs and symmetrical active-low output-enable OE inputs.

Active bus-hold circuitry holds unused or undriven inputs at a valid logic state. Use of pullup or pulldown resistors with the bus-hold circuitry is not recommended.

FEATURES

• Members of the Texas Instruments Widebus™ Family

• State-of-the-Art Advanced BiCMOS

   Technology ABT Design for 3.3-V Operation and Low Static-Power Dissipation

• Support Mixed-Mode Signal Operation

   5-V Input and Output Voltages With 3.3-V VCC

• Support Unregulated Battery Operation Down to 2.7 V

• Typical VOLP Output Ground Bounce

   <0.8 V at VCC = 3.3 V, TA = 25°C

• Ioff and Power-Up 3-State Support Hot Insertion

• Bus Hold on Data Inputs Eliminates the Need for External Pullup/Pulldown Resistors

• Latch-Up Performance Exceeds 500 mA Per JESD 17

• ESD Protection Exceeds JESD 22

   – 2000-V Human-Body Model A114-A

   – 200-V Machine Model A115-A
