16位缓冲器/驱动器，具有三态输出 16-BIT BUFFER/DRIVER WITH 3-STATE OUTPUTS
By driving the input to the transmission line this buffer and line driver by Texas Instruments will amplify any signal. With a 3-state output, this is power management at its best. This line driver has a minimum operating temperature of -40 °C and a maximum of 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This non-inverting device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 3.6 V. It has 16 channels per chip.
电源电压DC 1.65V min
输出接口数 16
通道数 16
位数 16
电压波节 3.30 V, 2.70 V, 2.50 V, 1.80 V
输出电流驱动 -1.00 mA
输入数 16
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 56

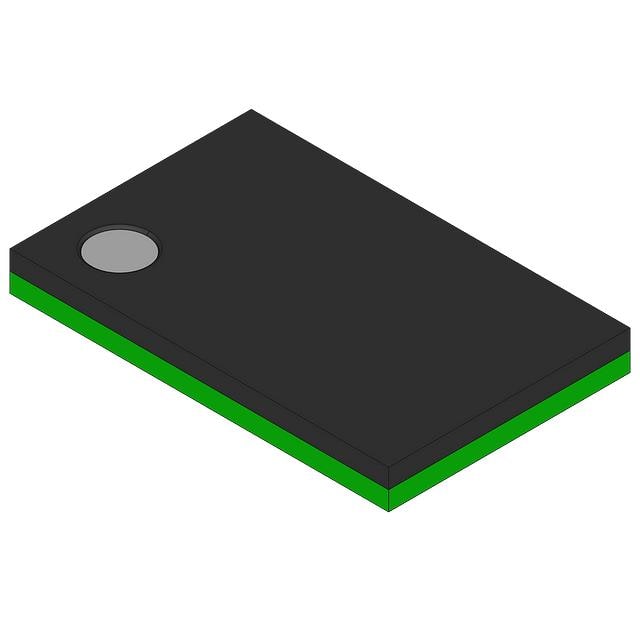

封装 BGA-56
长度 7 mm
宽度 4.5 mm
高度 0.75 mm
封装 BGA-56
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LVC162244AZQLR TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVC162244AGQLR 德州仪器 | 类似代替 | SN74LVC162244AZQLR和SN74LVC162244AGQLR的区别 |
