12位异步二进制计数器 12 BIT ASYNCHRONOUS BINARY COUNTERS
This binary counter shift register from Texas Instruments can be optimized in any circuit which contains numerous states, it will help maintain and switch into other states. This counter shift register has an operating temperature range of -40 °C to 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V.
电源电压DC 2.00V ~ 6.00V
输出接口数 12
时钟频率 53.0 MHz
位数 12
电压波节 6.00 V, 5.00 V, 2.00 V
输出电流驱动 -1.00 mA
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 6V
安装方式 Surface Mount
引脚数 16

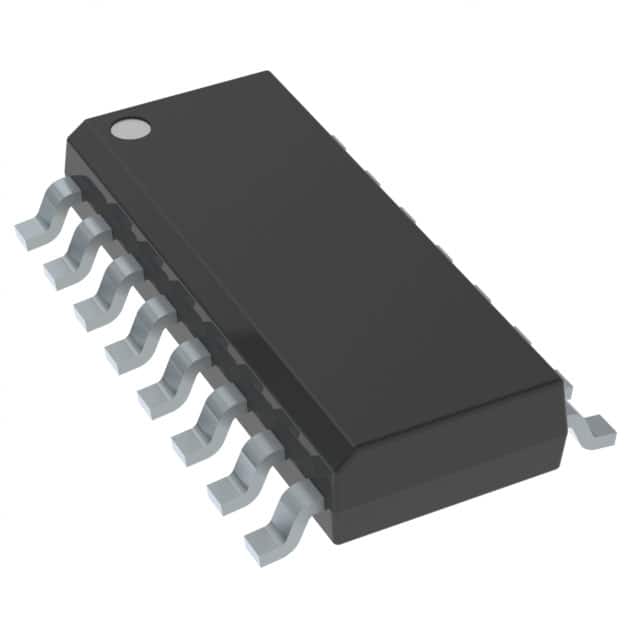

封装 SOP-16
封装 SOP-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74HC4040NSR TI 德州仪器 | 当前型号 | 当前型号 |
SN74HC4040NSRE4 德州仪器 | 完全替代 | SN74HC4040NSR和SN74HC4040NSRE4的区别 |
SN74HC4040DR 德州仪器 | 类似代替 | SN74HC4040NSR和SN74HC4040DR的区别 |
SN74HC4040D 德州仪器 | 类似代替 | SN74HC4040NSR和SN74HC4040D的区别 |
