D锁存器
This d-type low-level latch manufactured by Texas Instruments contains real time information and can be pushed through it once it is enabled. With a 3-state output, this is power management at its best. This latch has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device comes in tube packaging. This non-inverting device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 5.5 V. It has 8 channels per chip.
频率 1 MHz
电源电压DC 2.00V ~ 5.50V
输出接口数 8
输出电流 8 mA
电路数 8
位数 8
传送延迟时间 10.5 ns
极性 Non-Inverting
电压波节 5.00 V, 3.30 V
输出电流驱动 -1.00 mA
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 5.5V
安装方式 Through Hole
引脚数 20

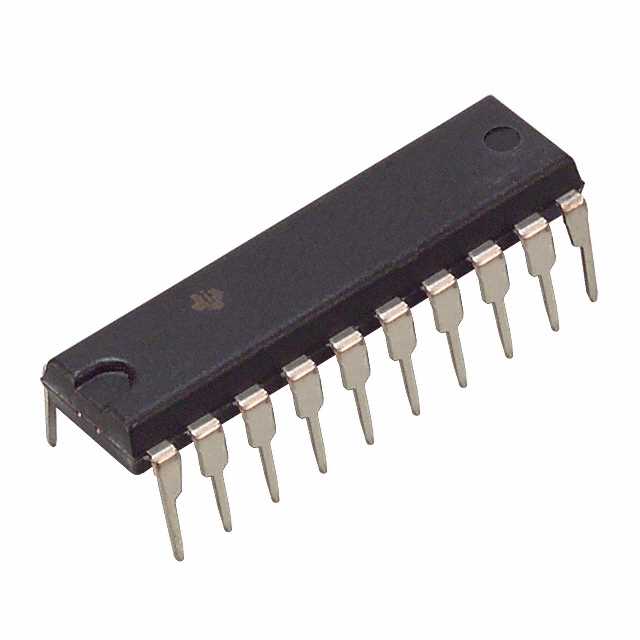

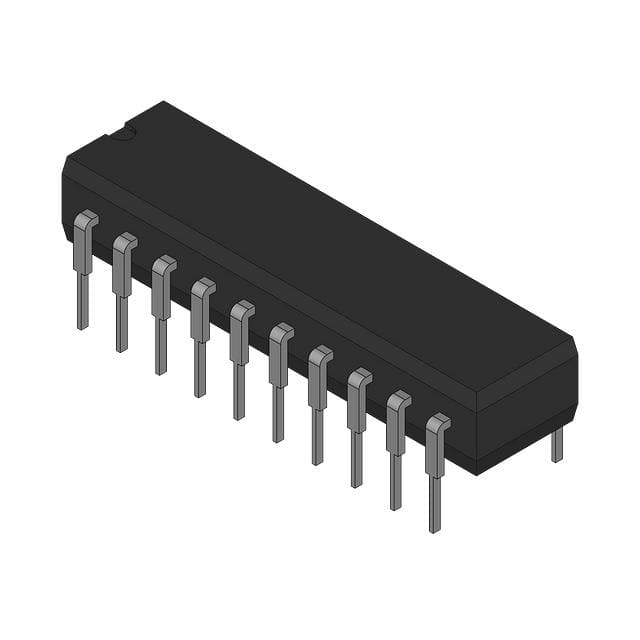

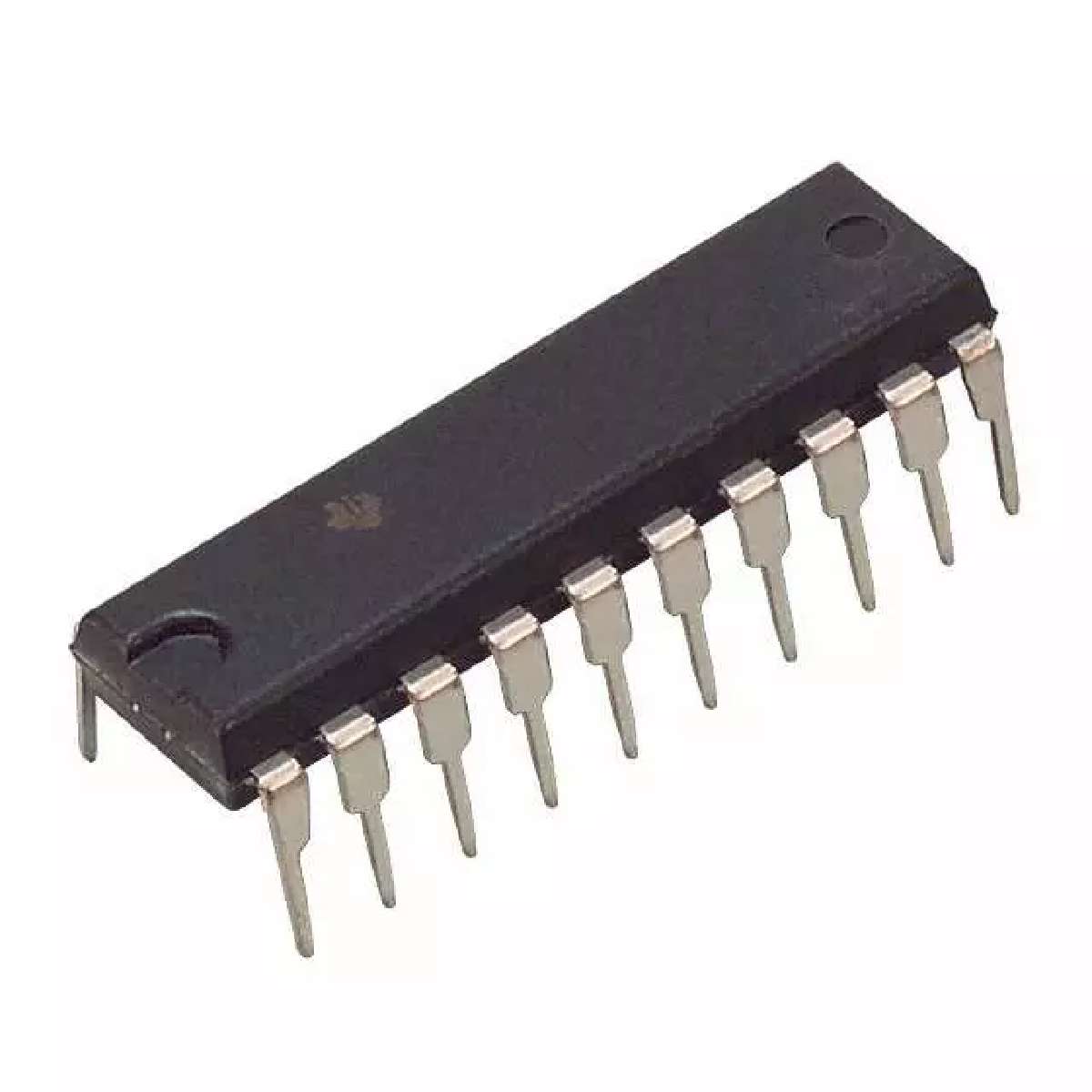

封装 PDIP-20
长度 24.33 mm
宽度 6.35 mm
高度 4.57 mm
封装 PDIP-20
重量 0.0191855977428 kg
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74AHC373N TI 德州仪器 | 当前型号 | 当前型号 |
5962-9686601QRA 德州仪器 | 类似代替 | SN74AHC373N和5962-9686601QRA的区别 |
SN74AHC373NE4 德州仪器 | 类似代替 | SN74AHC373N和SN74AHC373NE4的区别 |
SNJ54AHC373J 德州仪器 | 类似代替 | SN74AHC373N和SNJ54AHC373J的区别 |
