D锁存器三态同相输出
This d-type low-level latch from Texas Instruments stores state information and stores state information for your system. With a 3-state output, this is power management at its best. This latch has an operating temperature range of -40 °C to 85 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has 8 channels per chip. This non-inverting device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 5.5 V.
电源电压DC 2.00V ~ 5.50V
输出接口数 8
电路数 8
通道数 8
位数 8
传送延迟时间 10.5 ns
极性 Non-Inverting
电压波节 5.00 V, 3.30 V
输出电流驱动 -1.00 mA
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2 V

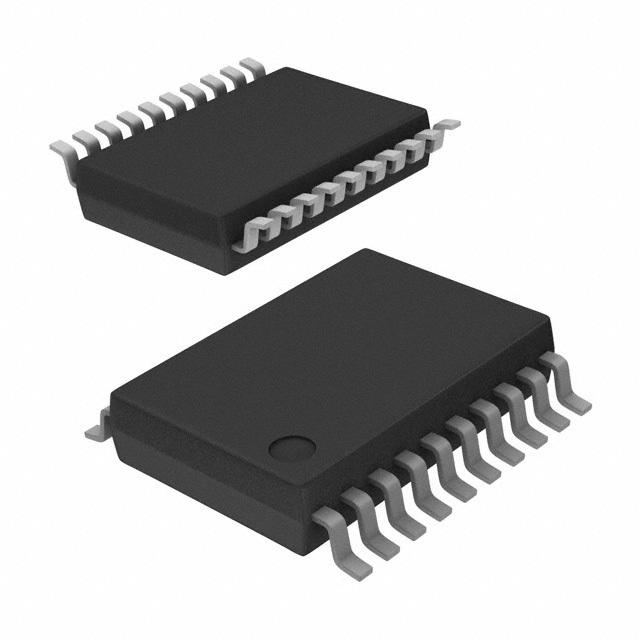

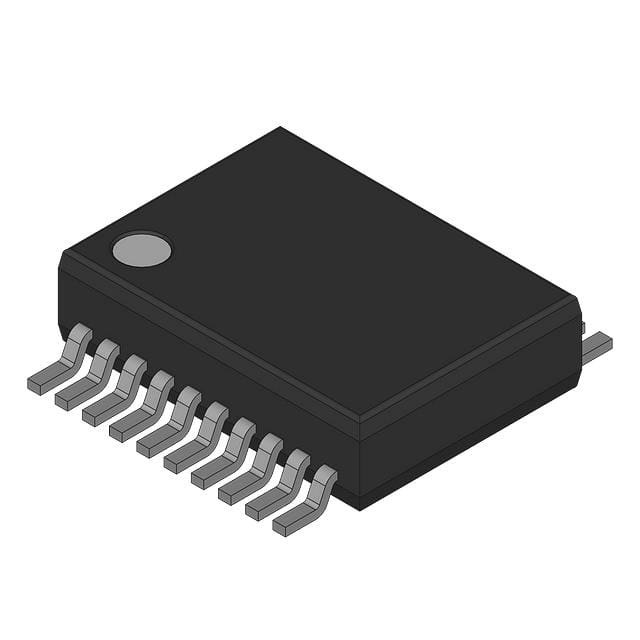

安装方式 Surface Mount
引脚数 20
封装 SSOP-20
长度 7.2 mm
宽度 5.3 mm
高度 1.95 mm
封装 SSOP-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74AHC373DBR TI 德州仪器 | 当前型号 | 当前型号 |
SN74AHC373DBRE4 德州仪器 | 完全替代 | SN74AHC373DBR和SN74AHC373DBRE4的区别 |
SN74AHC373DBRG4 德州仪器 | 完全替代 | SN74AHC373DBR和SN74AHC373DBRG4的区别 |
SN74AHC373DBLE 德州仪器 | 完全替代 | SN74AHC373DBR和SN74AHC373DBLE的区别 |
