SN74HC374DBRG4

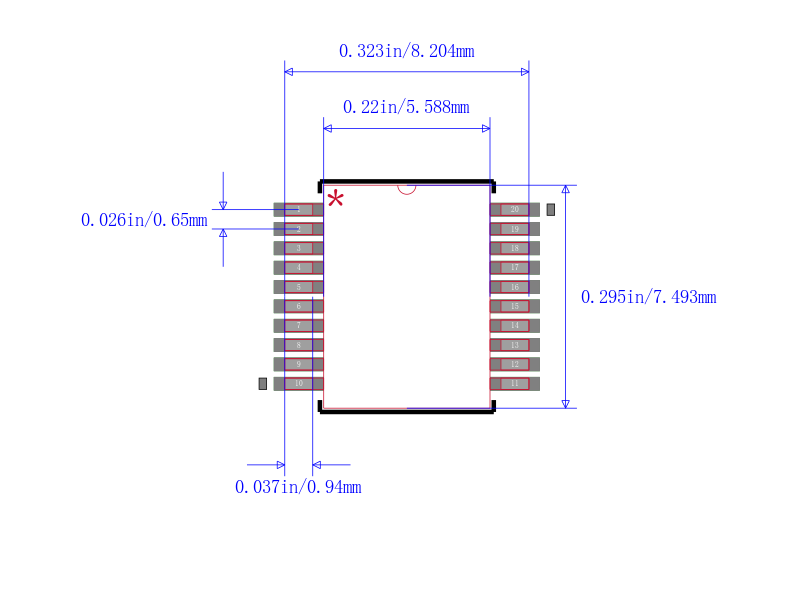

Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1Element 20Pin SSOP T/R

description/ordering information

These 8-bit flip-flops feature 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. They are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.

Wide Operating Voltage Range of 2 V to 6 V

High-Current 3-State True Outputs Can Drive Up To 15 LSTTL Loads

Eight D-Type Flip-Flops in a Single Package

Full Parallel Access for Loading

Low Power Consumption, 80-µA Max ICC

Typical tpd = 14 ns

±6-mA Output Drive at 5 V

Low Input Current of 1 µA Max
