双上升沿触发的D型触发器 DUAL POSITIVE-EDGE-TRIGGERED D-TYPE FLIP-FLOP
Store state information for later use by using the Texas Instruments flip flop device. It has a single-ended output signal. This flip flop has an operating temperature range of -40 °C to 85 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This non-inverting device has a typical operating supply voltage of 1.8|2.5 V. Its minimum operating supply voltage of 0.8 V, while its maximum is 2.7 V. It has 2 channels per chip.
电源电压DC 2.50 V
输出接口数 1
电路数 2
通道数 2
时钟频率 275 MHz
位数 2
传送延迟时间 1.30 ns
极性 Non-Inverting, Inverting
逻辑门个数 2
输入电容 2.5 pF
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 0.8V ~ 2.7V
电源电压Max 2.7 V
电源电压Min 0.8 V
安装方式 Surface Mount

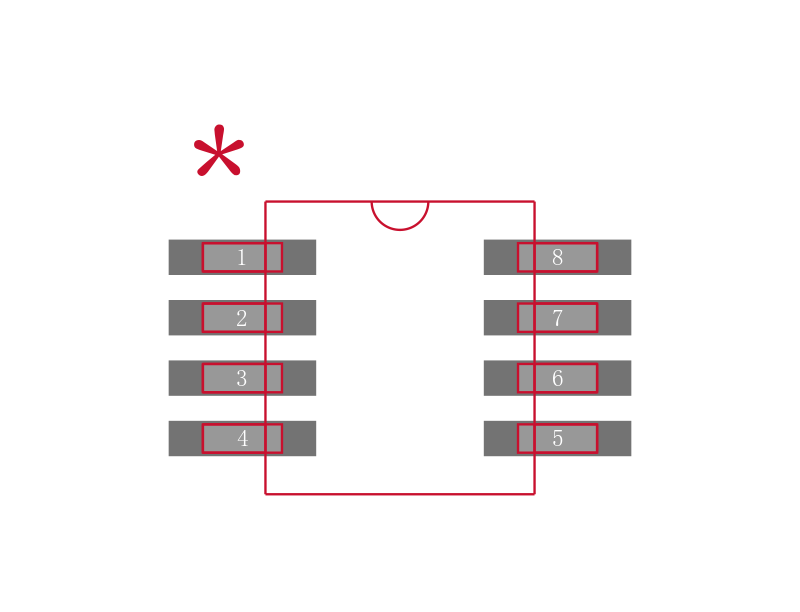

引脚数 8

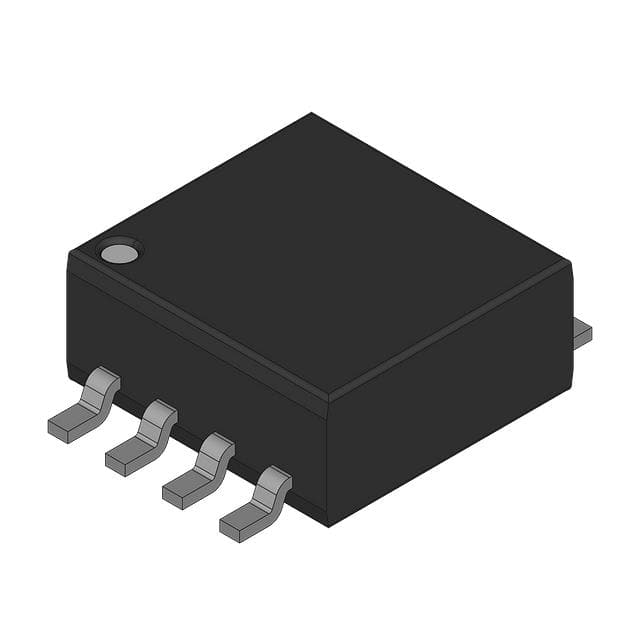

封装 SSOP-8
宽度 2.8 mm
封装 SSOP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
