八路D型触发器与Clear OCTAL D-TYPE FLIP-FLOPS WITH CLEAR
Store state information for later use by using the Texas Instruments flip flop device. It has a single-ended output signal. This flip flop has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device comes in tube packaging. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V. It has 8 channels per chip.
频率 60 MHz
电源电压DC 2.00V ~ 6.00V
输出接口数 8
输出电流 5.2 mA
时钟频率 60 MHz
位数 8
传送延迟时间 34.0 ns
电压波节 6.00 V, 5.00 V, 2.00 V
输入电容 3 pF
输出电流驱动 -1.00 mA
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Through Hole

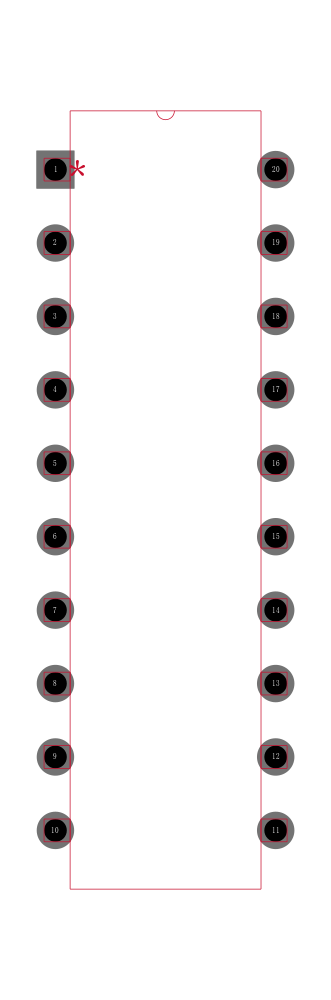

引脚数 20

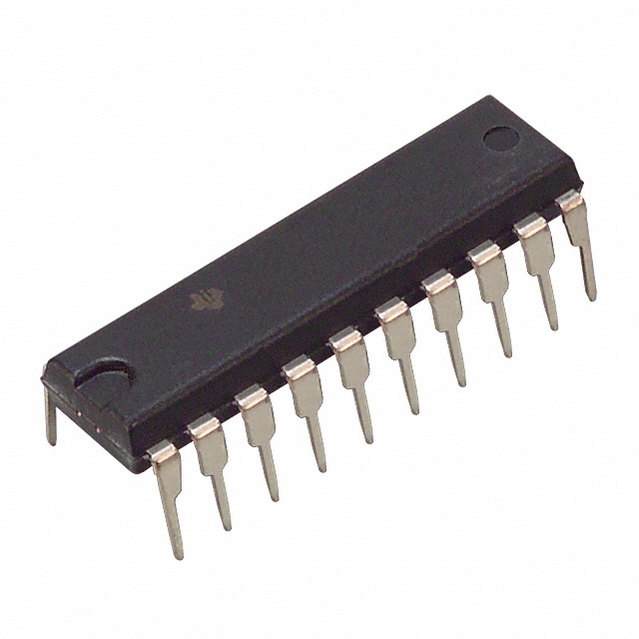

封装 DIP-20
封装 DIP-20
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74HC273NE4 TI 德州仪器 | 当前型号 | 当前型号 |
SN74HC273N3 德州仪器 | 完全替代 | SN74HC273NE4和SN74HC273N3的区别 |
SN74HC273N 德州仪器 | 类似代替 | SN74HC273NE4和SN74HC273N的区别 |
CD74HC273E 德州仪器 | 类似代替 | SN74HC273NE4和CD74HC273E的区别 |
