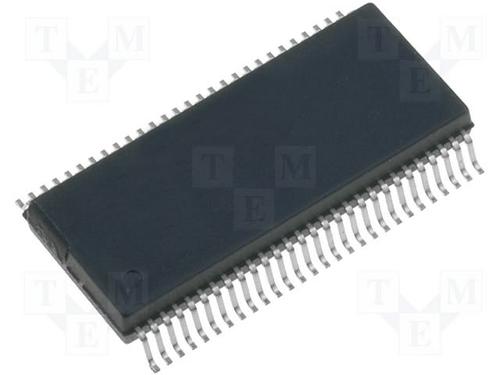

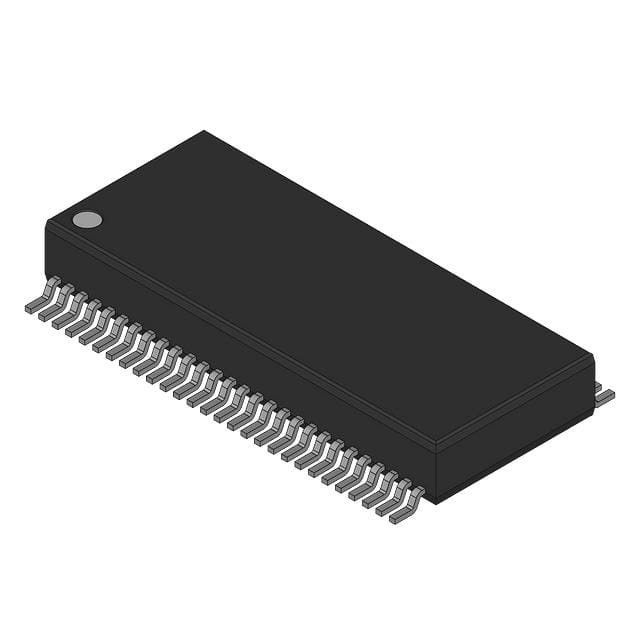

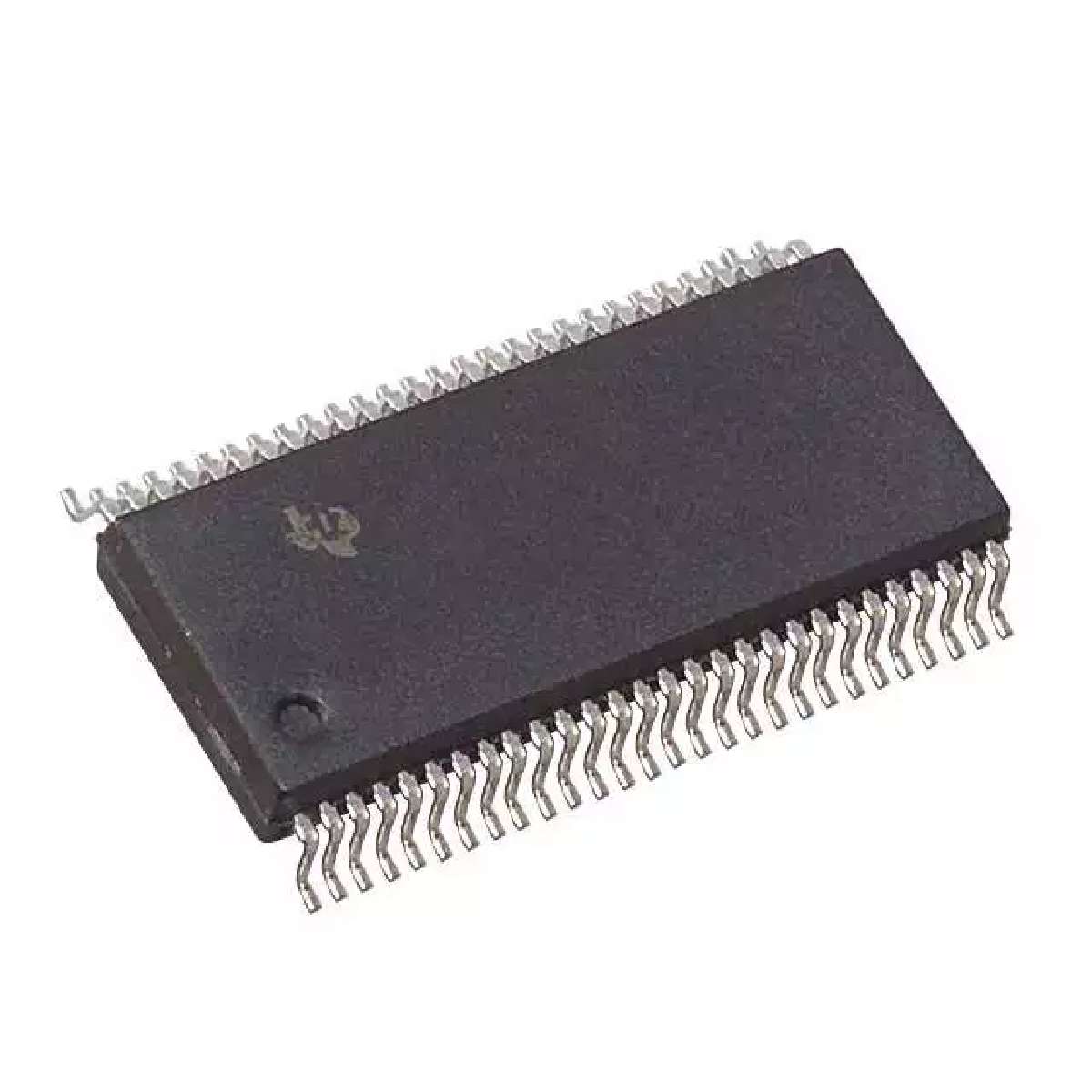

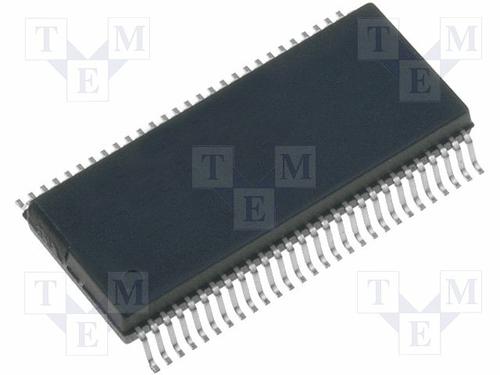

SN74ABT16825DL

18位缓冲器/驱动器，具有三态输出 18-BIT BUFFERS/DRIVERS WITH 3-STATE OUTPUTS

description

The ’ABT16825 devices are 18-bit buffers and line drivers designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. These devices can be used as two 9-bit buffers or one 18-bit buffer. They provide true data.

• Members of Texas Instruments’ Widebus™ Family

• Latch-Up Performance Exceeds 500 mA Per JEDEC Standard JESD 17

• Typical VOLP Output Ground Bounce

   <1 V at VCC = 5 V, TA = 25°C

• High-Impedance State During Power Up and Power Down

• Distributed VCC and GND Pins Minimize High-Speed Switching Noise

• Flow-Through Architecture Optimizes PCB Layout

• High-Drive Outputs –32-mA IOH, 64-mA IOL
