低功耗单路上升沿触发的D型触发器具有清零和预设 LOW-POWER SINGLE POSITIVE-EDGE-TRIGGERED D-TYPE FLIP-FLOP WITH CLEAR AND PRESET
Store state information by enabling this flip flop device from Texas Instruments. It has a differential output signal. This flip flop has an operating temperature range of -40 °C to 85 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This inverting/non-inverting device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 0.8 V, while its maximum is 3.6 V. It has 1 channels per chip.
电源电压DC -500 mV to 4.60 V
输出接口数 1
电路数 1
时钟频率 100 MHz
位数 1
传送延迟时间 2.00 ns
输入电容 1.5 pF
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 0.8V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 0.8 V
安装方式 Surface Mount
引脚数 8

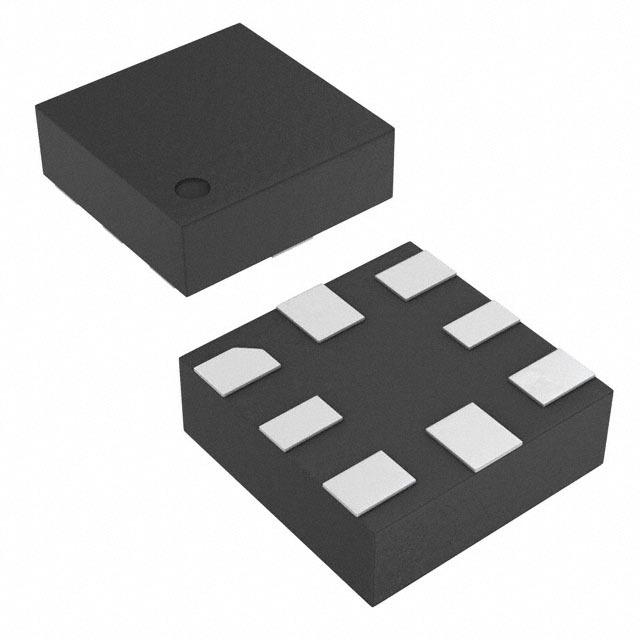

封装 UQFN-8
长度 1.5 mm
宽度 1.5 mm
封装 UQFN-8
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
