SN74F574N

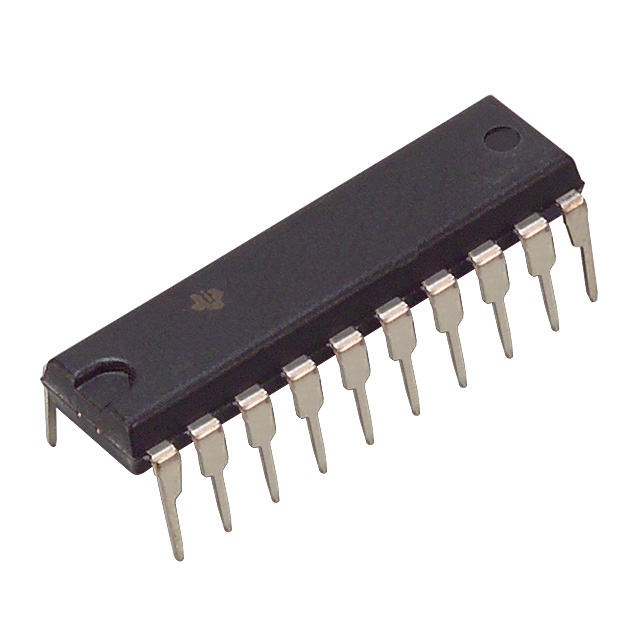

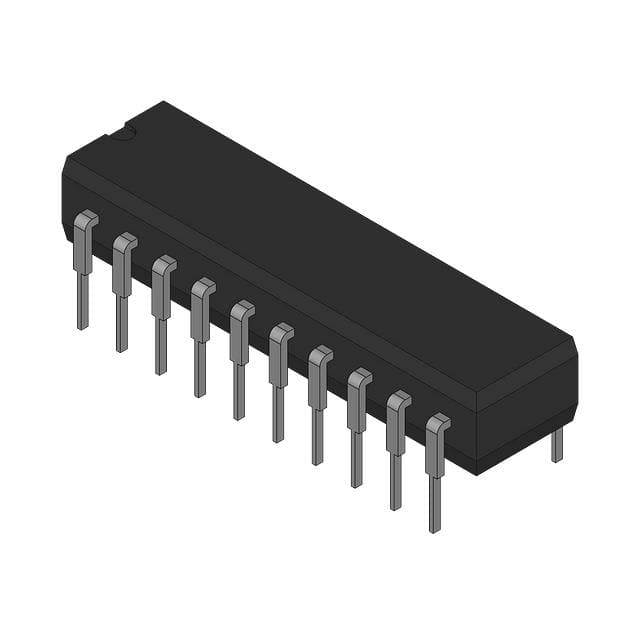

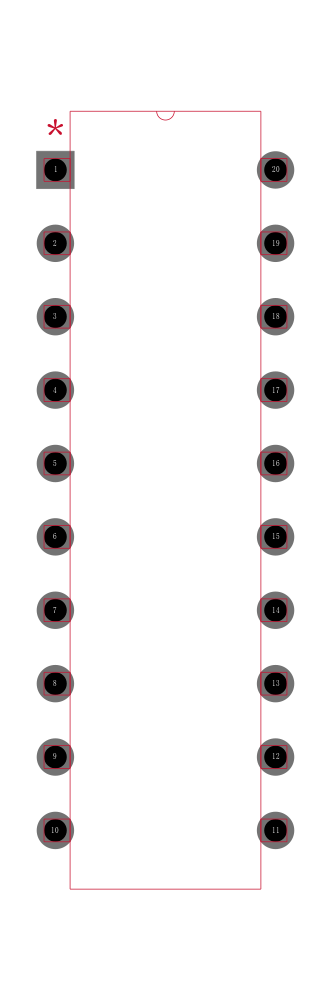

TEXAS INSTRUMENTS  SN74F574N  触发器, 三态非反相, 正沿, D, 6.1 ns, 100 MHz, 24 mA, DIP, 20 引脚

This 8-bit flip-flop features 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. It is particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.

The eight flip-flops of the SN74F574 are edge-triggered D-type flip-flops. On the positive transition of the clock CLK input, the Q outputs will be set to the logic levels that were set up at the data D inputs.

A buffered output enable input can be used to place the eight outputs in either a normal logic state high or low logic levels or a high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly. The high-impedance state and increased drive provide the capability to drive bus lines without need for interface or pullup components.

The output enable does not affect the internal operations of the flip-flops. Old data can be retained or new data can be entered while the outputs are in the high-impedance state.

The SN74F574 is characterized for operation from 0°C to 70°C.
