TEXAS INSTRUMENTS SN74LVC2G80DCUR 触发器, 反相, 正沿, D, 5 ns, 160 MHz, VSSOP, 8 引脚
Texas Instruments" flip flop device will allow you to easily build and test a circuit based on the state information provided. It has a single-ended output signal. This flip flop has a minimum operating temperature of -40 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has 2 channels per chip. This inverting device has a typical operating supply voltage of 1.8|2.5|3.3|5 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 5.5 V.
频率 160 MHz
电源电压DC 5.00 V, 5.50 V max
输出接口数 1
针脚数 8
时钟频率 160 MHz
位数 2
传送延迟时间 3.80 ns
极性 Inverting
逻辑门个数 2
输入电容 3.5 pF
输入数 1
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 8

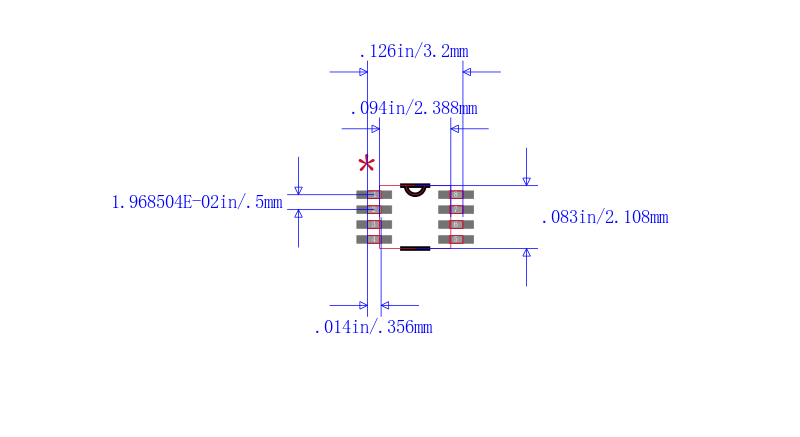

封装 VSSOP-8
封装 VSSOP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LVC2G80DCUR TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVC2G80DCURG4 德州仪器 | 完全替代 | SN74LVC2G80DCUR和SN74LVC2G80DCURG4的区别 |
SN74LVC2G80DCURE4 德州仪器 | 完全替代 | SN74LVC2G80DCUR和SN74LVC2G80DCURE4的区别 |
