双D型上升沿触发触发器与预置和清除 DUAL D-TYPE POSITIVE-EDGE-TRIGGERED FLIP-FLOPS WITH PRESET AND CLEAR
Texas Instruments brings you their latest flip flop device, a simple yet effective method for storing your circuit"s state information. It has a differential output signal. This flip flop has a minimum operating temperature of 0 °C and a maximum of 70 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has 2 channels per chip. This inverting/non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.75 V, while its maximum is 5.25 V.
频率 33 MHz
电源电压DC 4.75V ~ 5.25V
输出接口数 1
输出电流 8 mA
电路数 2
通道数 2
时钟频率 33 MHz
位数 2
传送延迟时间 40.0 ns
电压波节 5.00 V
输出电流驱动 -50.0 µA
输入数 1
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Surface Mount

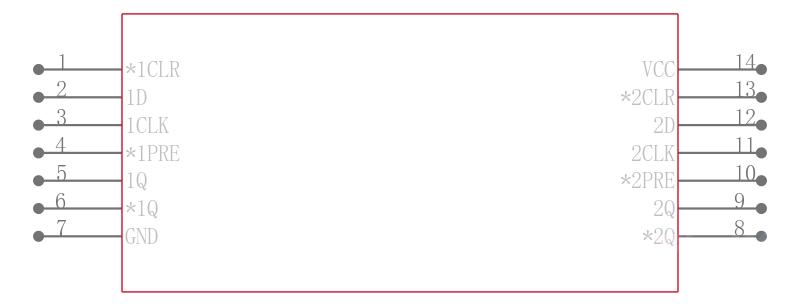

引脚数 14
封装 SOP-14
长度 10.3 mm
宽度 5.3 mm
高度 1.95 mm
封装 SOP-14
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LS74ANSR TI 德州仪器 | 当前型号 | 当前型号 |
SN74LS74ANSRG4 德州仪器 | 类似代替 | SN74LS74ANSR和SN74LS74ANSRG4的区别 |
