八路边沿触发D型触发器与Clear OCTAL EDGE-TRIGGERED D-TYPE FLIP-FLOPS WITH CLEAR
Store state information for later use by using the Texas Instruments flip flop device. It has a single-ended output signal. This flip flop has a minimum operating temperature of -40 °C and a maximum of 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V. It has 8 channels per chip.
频率 150 MHz
电源电压DC 4.50V ~ 5.50V
输出接口数 8
输出电流 64.0 mA
电路数 8
通道数 8
时钟频率 150 MHz
位数 8
传送延迟时间 7.40 ns
极性 Non-Inverting
电压波节 5.00 V
静态电流 30 mA
输入电容 7 pF
输出电流驱动 -500 µA
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 20

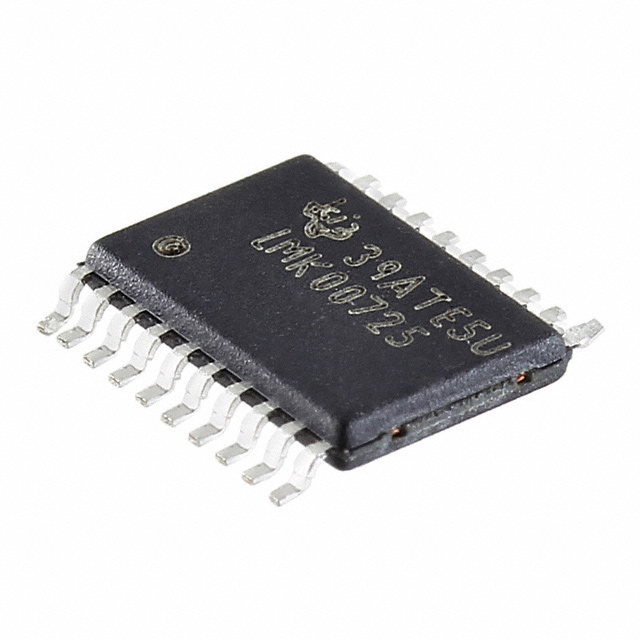

封装 TSSOP-20
长度 6.5 mm
宽度 4.4 mm
高度 1.15 mm
封装 TSSOP-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74ABT273PWR TI 德州仪器 | 当前型号 | 当前型号 |
SN74AHCT273PWR 德州仪器 | 类似代替 | SN74ABT273PWR和SN74AHCT273PWR的区别 |
SN74AHCT273DW 德州仪器 | 类似代替 | SN74ABT273PWR和SN74AHCT273DW的区别 |
SN74ALS273DW 德州仪器 | 类似代替 | SN74ABT273PWR和SN74ALS273DW的区别 |
