SN74AC373N概述

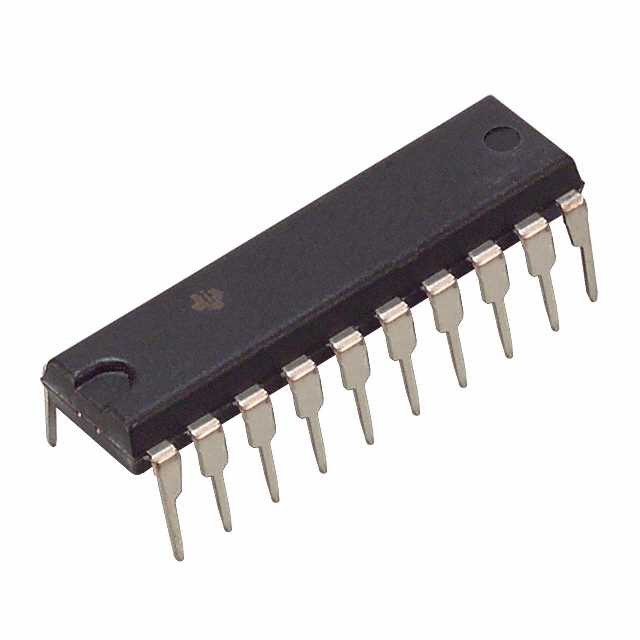

TEXAS INSTRUMENTS  SN74AC373N  逻辑芯片, D型透明锁存器, 八路, 20DIP

The is an octal Transparent D Latch with 3-state outputs. It is designed specifically for driving highly capacitive or relatively low-impedance loads. It is particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers and working registers. The eight latches are D-type transparent latches. When the LE input is high, the Q outputs follow the data D inputs. When LE is taken low, the Q outputs are latched at the logic levels set up at the D inputs. A buffered OE\ input can be used to place the eight outputs in either a normal logic state high or low logic levels or the high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly. The high-impedance state and increased drive provide the capability to drive bus lines in bus-organized systems without need for interface or pull-up components.

.
Full parallel access for loading
.
Maximum tpd of 9.5ns at 5V
.
3-state Noninverting outputs drive bus lines directly
SN74AC373N中文资料参数规格
技术参数

电源电压DC 2.00V ~ 6.00V

输出接口数 8

输出电流 24 mA

电路数 8

通道数 8

针脚数 20

位数 8

传送延迟时间 9.50 ns

电压波节 5.00 V, 3.30 V

输出电流驱动 -1.00 mA

输入数 8

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 2V ~ 6V

电源电压Max 6 V

电源电压Min 2 V

封装参数

安装方式 Through Hole

引脚数 20

封装 PDIP-20

外形尺寸

长度 24.33 mm

宽度 6.35 mm

高度 4.57 mm

封装 PDIP-20

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

海关信息

ECCN代码 EAR99

数据手册

SN74AC373N引脚图与封装图

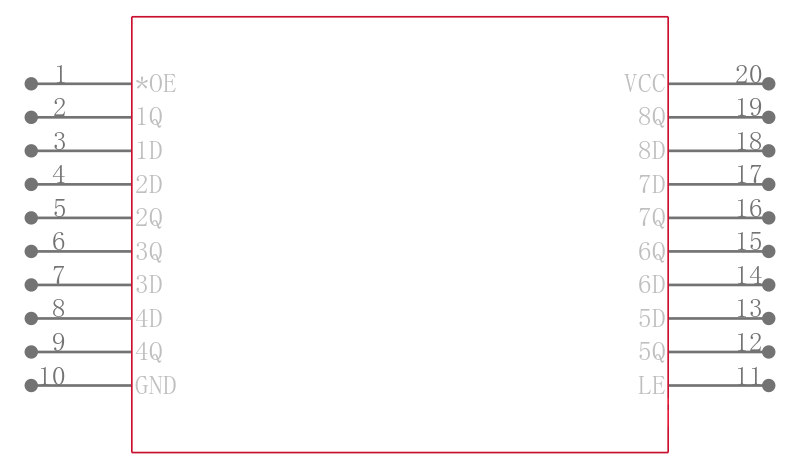

SN74AC373N引脚图

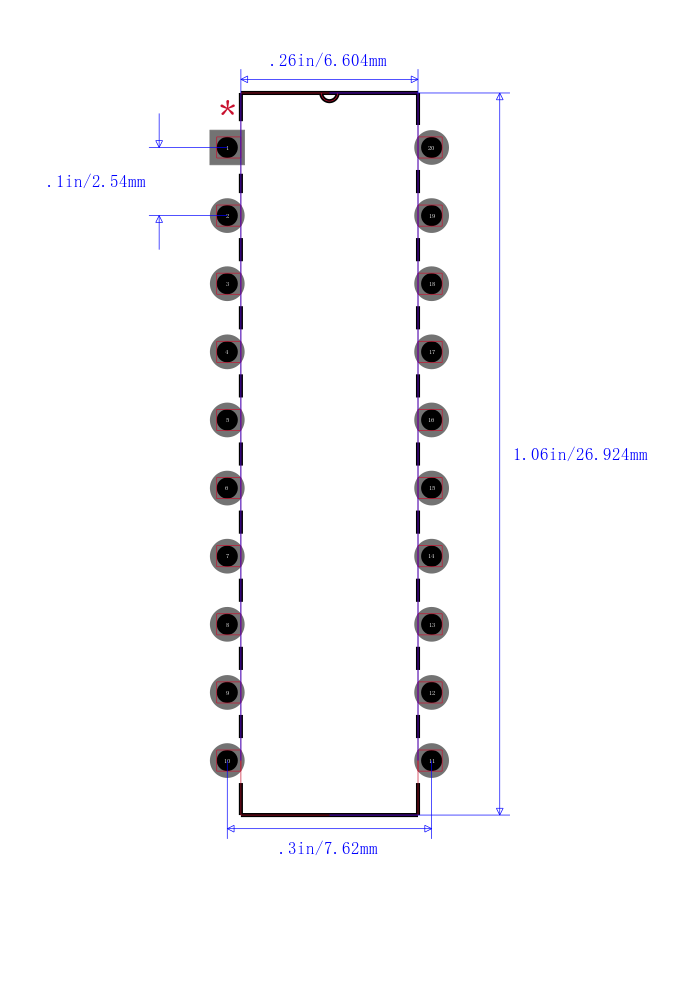

SN74AC373N封装图

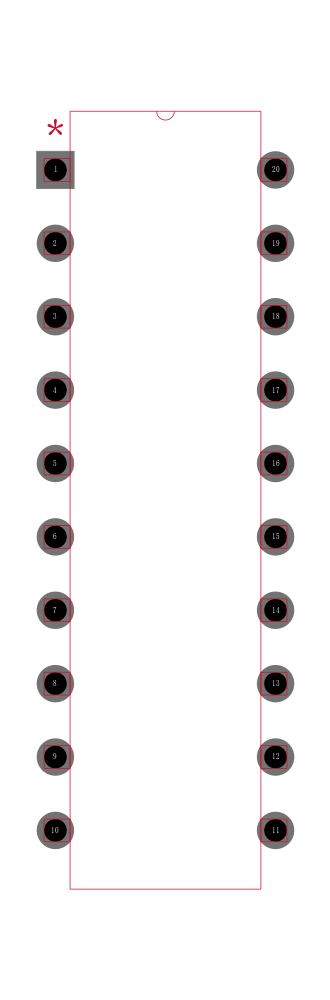

SN74AC373N封装焊盘图
