双D型上升沿触发的触发器具有清零和预设 DUAL D-TYPE POSITIVE-EDGE-TRIGGERED FLIP-FLOPS WITH CLEAR AND PRESET
Texas Instruments" flip flop device will allow you to easily build and test a circuit based on the state information provided. It has a differential output signal. This flip flop has a minimum operating temperature of -40 °C and a maximum of 85 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has 2 channels per chip. This inverting/non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
频率 46.0 MHz
电源电压DC 4.50V ~ 5.50V
输出接口数 1
输出电流 4.00 mA
电路数 2
时钟频率 46 MHz
位数 2
传送延迟时间 31.0 ns
电压波节 5.00 V
输入电容 3 pF
输出电流驱动 -1.00 mA
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount

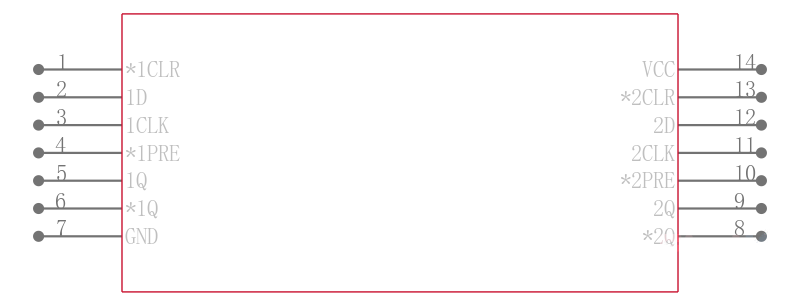

引脚数 14
封装 SOIC-14
长度 8.65 mm
宽度 3.91 mm
高度 1.58 mm
封装 SOIC-14
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74HCT74DT TI 德州仪器 | 当前型号 | 当前型号 |
SN74HCT74DRG4 德州仪器 | 完全替代 | SN74HCT74DT和SN74HCT74DRG4的区别 |
SN74HCT74DG4 德州仪器 | 完全替代 | SN74HCT74DT和SN74HCT74DG4的区别 |
SN74HCT74DRE4 德州仪器 | 完全替代 | SN74HCT74DT和SN74HCT74DRE4的区别 |
