八路边沿触发D型触发器与Clear OCTAL EDGE-TRIGGERED D-TYPE FLIP-FLOPS WITH CLEAR
Think of Texas Instruments" flip flop device in the event you need to save or retrieve your circuit"s state information quickly. It has a single-ended output signal. This flip flop has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It has 8 channels per chip. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
频率 150 MHz
电源电压DC 4.50V ~ 5.50V
输出接口数 8
电路数 8
时钟频率 150 MHz
位数 8
传送延迟时间 7.40 ns
极性 Non-Inverting
电压波节 5.00 V
输入电容 7 pF
输出电流驱动 -500 µA
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
安装方式 Surface Mount
引脚数 20

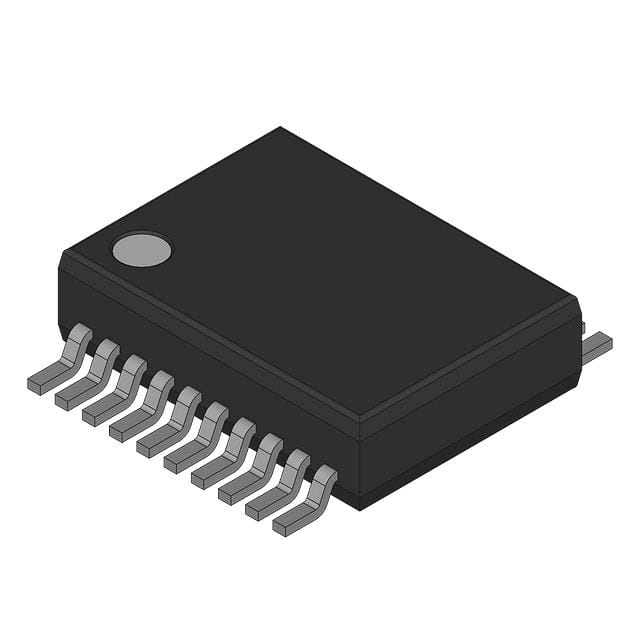

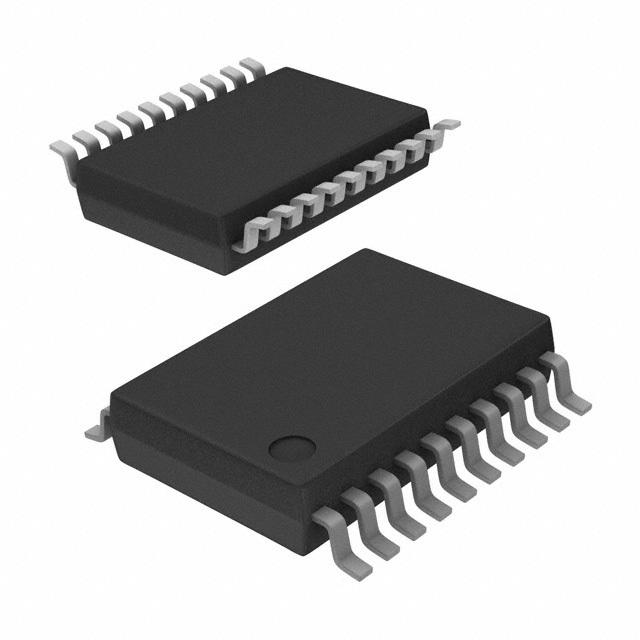

封装 SSOP-20
封装 SSOP-20
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74ABT273DBR TI 德州仪器 | 当前型号 | 当前型号 |
SN74ABT273DBLE 德州仪器 | 完全替代 | SN74ABT273DBR和SN74ABT273DBLE的区别 |
SN74ABT273DBRG4 德州仪器 | 类似代替 | SN74ABT273DBR和SN74ABT273DBRG4的区别 |
74ABT273CMSA 飞兆/仙童 | 功能相似 | SN74ABT273DBR和74ABT273CMSA的区别 |
