八路D型透明锁存器带3态输出 OCTAL D-TYPE TRANSPARENT LATCHES WITH 3-STATE OUTPUTS
This d-type low-level latch from Texas Instruments creates a barrier of information and will open once it is enabled. With a 3-state output, this is power management at its best. This latch has an operating temperature range of -40 °C to 85 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V. It has 8 channels per chip.
电源电压DC 4.50V ~ 5.50V
输出接口数 8
输出电流 24 mA
电路数 8
位数 8
传送延迟时间 11.5 ns
极性 Non-Inverting
电压波节 5.00 V
输出电流驱动 -1.00 mA
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 20

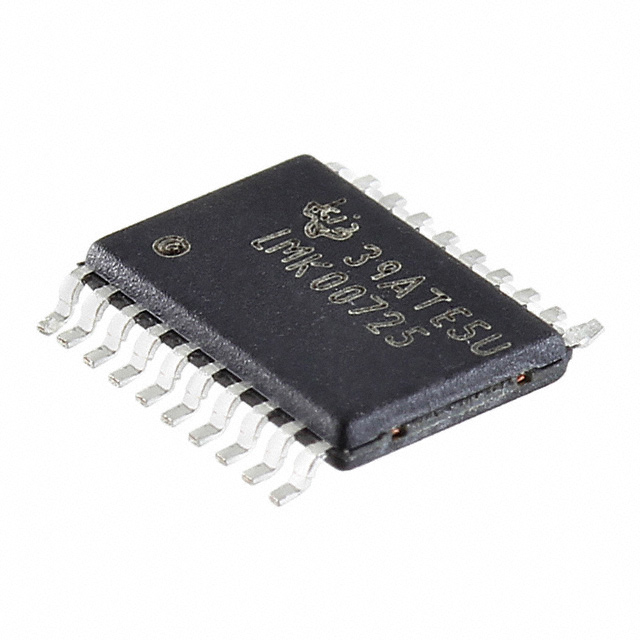

封装 TSSOP-20
封装 TSSOP-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74ACT373PWR TI 德州仪器 | 当前型号 | 当前型号 |
SN74ACT373PW 德州仪器 | 完全替代 | SN74ACT373PWR和SN74ACT373PW的区别 |
SN74ACT373PWLE 德州仪器 | 完全替代 | SN74ACT373PWR和SN74ACT373PWLE的区别 |
SN74AC373PWR 德州仪器 | 类似代替 | SN74ACT373PWR和SN74AC373PWR的区别 |
