八路D型边沿触发触发器具有三态输出 OCTAL D TYPE EDGE TRIGGERED FLIP FLOPS WITH 3 STATE OUTPUTS
These 8-bit flip-flops feature 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. The devices are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.
The eight flip-flops of the AC374 devices are D-type edge-triggered flip-flops. On the positive transition of the clock CLK input, the Q outputs are set to the logic levels set up at the data D inputs.
A buffered output-enable OE\ input can be used to place the eight outputs in either a normal logic state high or low logic levels or the high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly. The high-impedance state and the increased drive provide the capability to drive bus lines in bus-organized systems without need for interface or pullup components.
OE\ does not affect internal operations of the flip-flop. Old data can be retained or new data can be entered while the outputs are in the high-impedance state.
To ensure the high-impedance state during power up or power down, OE\ should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
频率 100 MHz
电源电压DC 2.00V ~ 6.00V
输出接口数 8
输出电流 24.0 mA
电路数 8
时钟频率 155 MHz
位数 8
传送延迟时间 10.5 ns
极性 Non-Inverting
电压波节 5.00 V, 3.30 V
输入电容 4.5 pF
输出电流驱动 -1.00 mA
输入数 8
电源电压 2V ~ 6V
安装方式 Surface Mount
引脚数 20

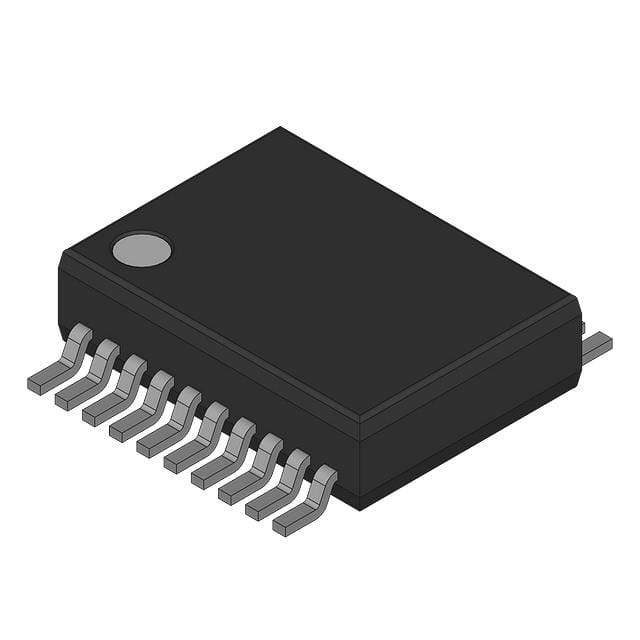

封装 SSOP-20
封装 SSOP-20
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
