八D型边沿触发触发器具有三态输出 OCTAL D-TYPE EDGE-TRIGGERED FLIP-FLOPS WITH 3-STATE OUTPUTS

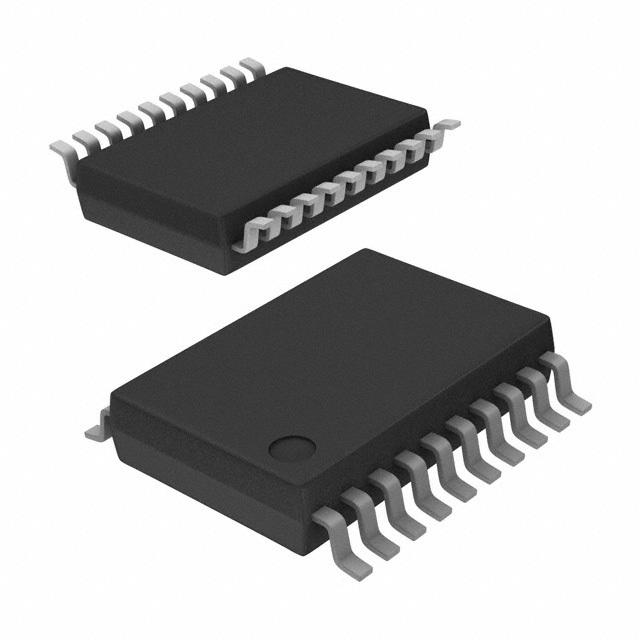

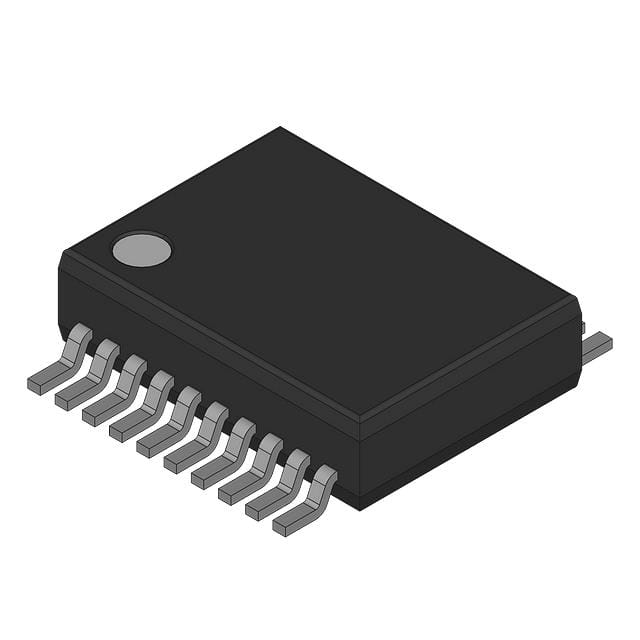

元件 D 型 位 正边沿 20-SSOP（0.209"，5.30mm 宽）
得捷:
IC FF D-TYPE SNGL 8BIT 20SSOP
立创商城:
SN74AC574DBR
德州仪器TI:
Octal D-Type Edge-Triggered Flip-Flops with 3-State Outputs
艾睿:
Texas Instruments&s; SN74AC574DBR flip flop device will allow you to easily build and test a circuit based on the state information provided. With a 3-state output, this is power management at its best. It has a single-ended output signal. This flip flop has a minimum operating temperature of -40 °C and a maximum of 85 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has 8 channels per chip. This non-inverting device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V.
Chip1Stop:
Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin SSOP T/R
Verical:
Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 20-Pin SSOP T/R
AMEYA360:
IC D-TYPE POS TRG SNGL 20SSOP
频率 85 MHz
电源电压DC 2.00V ~ 6.00V
输出接口数 8
输出电流 24.0 mA
电路数 8
通道数 8
时钟频率 153 MHz
位数 8
传送延迟时间 11.0 ns
极性 Non-Inverting
电压波节 5.00 V, 3.30 V
输入电容 4.5 pF
输出电流驱动 -1.00 mA
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 20
封装 SSOP-20
长度 7.2 mm
宽度 5.3 mm
高度 1.95 mm
封装 SSOP-20
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
