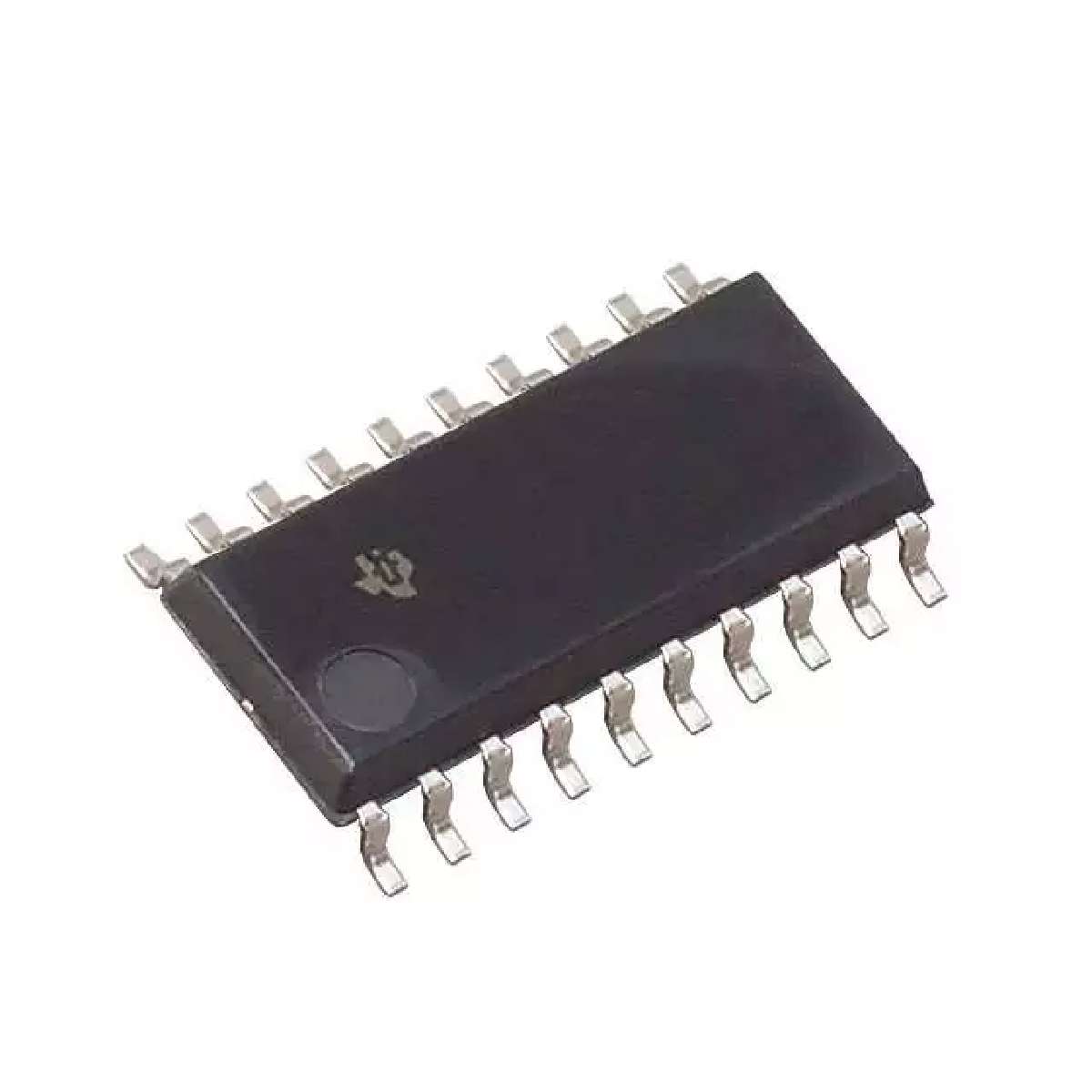

八D型边沿触发触发器具有三态输出 OCTAL D-TYPE EDGE-TRIGGERED FLIP-FLOPS WITH 3-STATE OUTPUTS
Look no further than Texas Instruments" flip flop device, a great device for storing simple state information. With a 3-state output, this is power management at its best. It has a single-ended output signal. This flip flop has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V. It has 8 channels per chip.
频率 90 MHz
电源电压DC 4.50V ~ 5.50V
输出接口数 8
输出电流 24.0 mA
电路数 8
通道数 8
时钟频率 160 MHz
位数 8
传送延迟时间 11.5 ns
电压波节 5.00 V
输入电容 4.5 pF
输出电流驱动 -1.00 mA
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 20
封装 SOP-20
宽度 5.3 mm
封装 SOP-20
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74ACT374NSR TI 德州仪器 | 当前型号 | 当前型号 |
SN74ACT374DW 德州仪器 | 类似代替 | SN74ACT374NSR和SN74ACT374DW的区别 |
SN74ACT374DWE4 德州仪器 | 类似代替 | SN74ACT374NSR和SN74ACT374DWE4的区别 |
