八D型边沿触发触发器具有三态输出 OCTAL D-TYPE EDGE-TRIGGERED FLIP-FLOPS WITH 3-STATE OUTPUTS
These 8-bit flip-flops feature 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. The devices are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.
The eight flip-flops of the ACT374 devices are D-type edge-triggered flip-flops. On the positive transition of the clock CLK input, the Q outputs are set to the logic levels set up at the data D inputs.
A buffered output-enable OE\ input can be used to place the eight outputs in either a normal logic state high or low logic levels or the high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines significantly. The high-impedance state and the increased drive provide the capability to drive bus lines in bus-organized systems without need for interface or pullup components.
OE\ does not affect internal operations of the flip-flop. Old data can be retained or new data can be entered while the outputs are in the high-impedance state.
To ensure the high-impedance state during power up or power down, OE\ should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
频率 160 MHz
电源电压DC 4.50V ~ 5.50V
输出接口数 8
输出电流 24 mA
电路数 8
时钟频率 160 MHz
位数 8
传送延迟时间 11.5 ns
极性 Non-Inverting
电压波节 5.00 V
输入电容 4.5 pF
输出电流驱动 -1.00 mA
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount

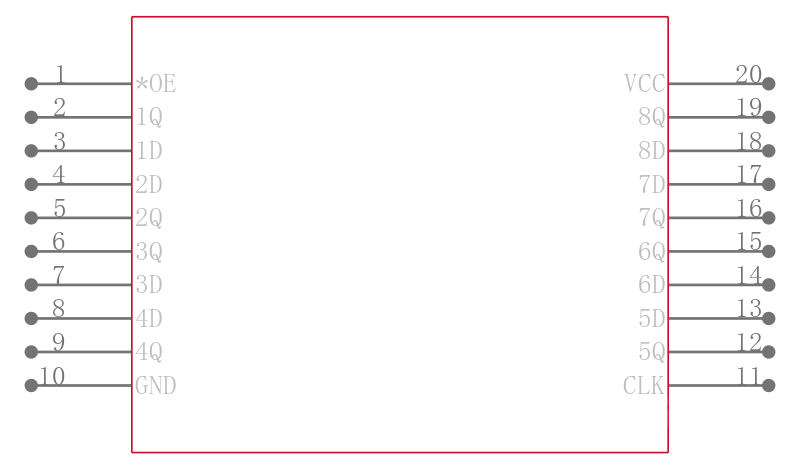

引脚数 20
封装 SOIC-20
封装 SOIC-20
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74ACT374DWR TI 德州仪器 | 当前型号 | 当前型号 |
SN74ACT374DW 德州仪器 | 完全替代 | SN74ACT374DWR和SN74ACT374DW的区别 |
CD74ACT374M 德州仪器 | 类似代替 | SN74ACT374DWR和CD74ACT374M的区别 |
