八路D型透明锁存器带3态输出 OCTAL D-TYPE TRANSPARENT LATCHES WITH 3-STATE OUTPUTS
description
These 8-bit latches feature 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. The devices are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.
2-V to 6-V VCC Operation
Inputs Accept Voltages to 6V
Max tpdof 9.5 ns at 5V
3-State Noninverting Outputs Drive Bus Lines Directly
Full Parallel Access for Loading
立创商城:
SN74AC373DBR
德州仪器TI:
Octal D-Type Transparent Latches With 3-State Outputs
得捷:
IC OCT D-TYP TRANSP LATCH 20SSOP
艾睿:
Latch Transparent 3-ST 8-CH D-Type 20-Pin SSOP T/R
安富利:
Latch Transparent 3-ST 8-CH D-Type 20-Pin SSOP T/R
AMEYA360:
IC OCT D-TYP TRANSP LATCH 20SSOP
Win Source:
IC OCT D-TYP TRANSP LATCH 20SSOP / D-Type Transparent Latch 1 Channel 8:8 IC Tri-State 20-SSOP
电源电压DC 2.00V ~ 6.00V
输出接口数 8
输出电流 24.0 mA
电路数 8
通道数 8
位数 8
传送延迟时间 9.50 ns
极性 Non-Inverting
电压波节 5.00 V, 3.30 V
输出电流驱动 -1.00 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount

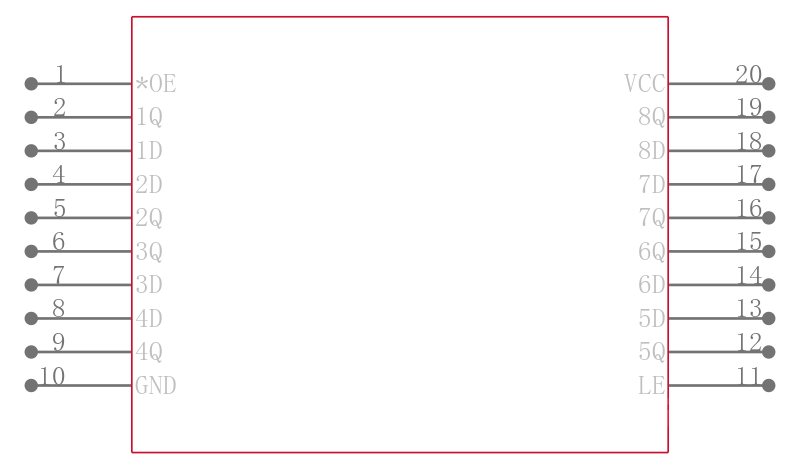

引脚数 20
封装 SSOP-20
长度 7.2 mm
宽度 5.3 mm
高度 1.95 mm
封装 SSOP-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74AC373DBR TI 德州仪器 | 当前型号 | 当前型号 |
SN74AC373DBLE 德州仪器 | 完全替代 | SN74AC373DBR和SN74AC373DBLE的区别 |
SN74AC373DBRE4 德州仪器 | 完全替代 | SN74AC373DBR和SN74AC373DBRE4的区别 |
SN74AC373DBRG4 德州仪器 | 类似代替 | SN74AC373DBR和SN74AC373DBRG4的区别 |
