单上升沿触发的D型触发器具有清零和预设 SINGLE POSITIVE-EDGE-TRIGGERED D-TYPE FLIP-FLOP WITH CLEAR AND PRESET
Look no further than Texas Instruments" flip flop device, a great device for storing simple state information. It has a differential output signal. This flip flop has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has 1 channels per chip. This inverting/non-inverting device has a typical operating supply voltage of 1.8|2.5|3.3|5 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 5.5 V.
频率 200 MHz
输出接口数 1
电路数 1
针脚数 8
时钟频率 200 MHz
位数 1
传送延迟时间 4.40 ns
逻辑门个数 2
输入电容 5 pF
输入数 1
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 8

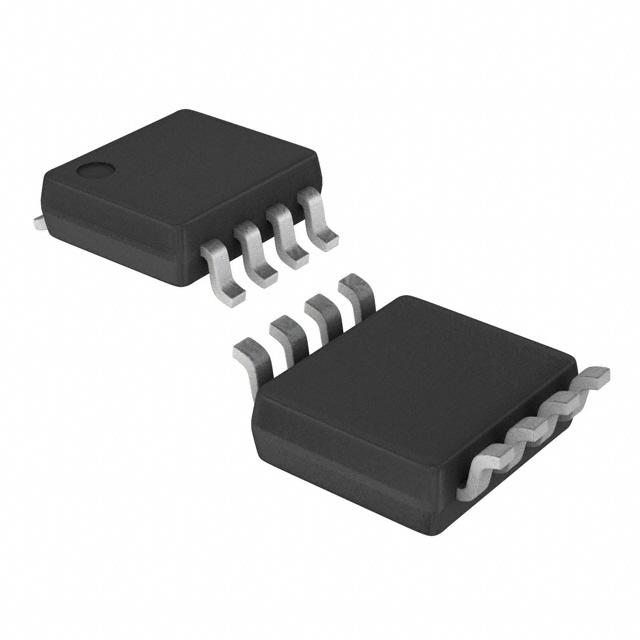

封装 VSSOP-8
封装 VSSOP-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74LVC1G74DCUT TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVC1G74DCUR 德州仪器 | 完全替代 | SN74LVC1G74DCUT和SN74LVC1G74DCUR的区别 |
SN74LVC2G74DCURG4 德州仪器 | 完全替代 | SN74LVC1G74DCUT和SN74LVC2G74DCURG4的区别 |
SN74LVC1G74DCURG4 德州仪器 | 完全替代 | SN74LVC1G74DCUT和SN74LVC1G74DCURG4的区别 |
