74LVC 系列触发器和闩锁,Texas InstrumentsTexas Instruments 的 74LVC 系列低压 CMOS 逻辑 IC 的一系列触发器和闩锁。 74LVC 系列使用硅门 CMOS 技术,设计用于在 3.3V 下工作,与 5V 系统相比可明显降低功耗。工作电压:1.65 至 3.6V 5V 容差的输入 兼容性:输入 LVTTL/TTL,输出 LVCMOS 按 JESD 17标准,闩锁效应性能超过 250 mA ESD 保护超过 JESD 22 ### 74LVC 系列
元件 D 型 位 正边沿 24-TSSOP(0.173",4.40mm 宽)
得捷:
IC FF D-TYPE SNGL 9BIT 24TSSOP
立创商城:
SN74LVC823APWR
德州仪器TI:
9-Bit Bus-Interface Flip-Flop With 3-State Outputs
欧时:
### 74LVC 系列触发器和闩锁,Texas InstrumentsTexas Instruments 的 74LVC 系列低压 CMOS 逻辑 IC 的一系列触发器和闩锁。 74LVC 系列使用硅门 CMOS 技术,设计用于在 3.3V 下工作,与 5V 系统相比可明显降低功耗。工作电压:1.65 至 3.6V 5V 容差的输入 兼容性:输入 LVTTL/TTL,输出 LVCMOS 按 JESD 17标准,闩锁效应性能超过 250 mA ESD 保护超过 JESD 22 ### 74LVC 系列
艾睿:
Think of Texas Instruments&s; SN74LVC823APWR flip flop device in the event you need to save or retrieve your circuit&s;s state information quickly. It has a single-ended output signal. With a 3-state output, this is power management at its best. This flip flop has an operating temperature range of -40 °C to 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This non-inverting device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 3.6 V. It has 9 channels per chip.
安富利:
Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 24-Pin TSSOP T/R
Chip1Stop:
Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 24-Pin TSSOP T/R
Verical:
Flip Flop D-Type Bus Interface Pos-Edge 3-ST 1-Element 24-Pin TSSOP T/R
Win Source:
IC D-TYPE POS TRG SNGL 24TSSOP
频率 150 MHz
电源电压DC 2.00V ~ 3.60V
输出接口数 9
输出电流 24.0 mA
时钟频率 150 MHz
位数 9
极性 Non-Inverting
电压波节 3.30 V, 2.70 V, 2.50 V, 1.80 V
输入电容 5 pF
输出电流驱动 -1.00 mA
输入数 9
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 3.6V
安装方式 Surface Mount
引脚数 24

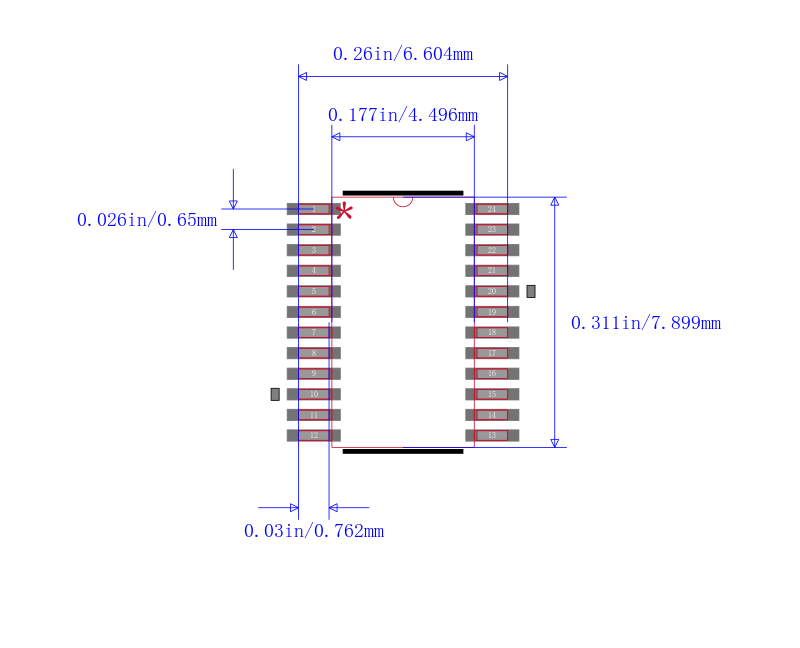

封装 TSSOP-24
长度 7.8 mm
宽度 4.4 mm
高度 1.15 mm
封装 TSSOP-24
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74LVC823APWR TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVC823APWT 德州仪器 | 完全替代 | SN74LVC823APWR和SN74LVC823APWT的区别 |
SN74LVC823ADBR 德州仪器 | 完全替代 | SN74LVC823APWR和SN74LVC823ADBR的区别 |
