可配置电压转换和三态输出的4位双电源总线收发器 4-BIT DUAL-SUPPLY BUS TRANSCEIVER WITH CONFIGURABLE VOLTAGE TRANSLATION AND 3-STATE OUTPUTS
转换收发器 2 元件 4 位每元件 三态 Output 16-TVSOP
立创商城:
SN74AVCH4T245DGVR
得捷:
IC TRANSLATION TXRX 3.6V 16TVSOP
德州仪器TI:
4-Bit Dual-Supply Bus Transceiver with Configurable Voltage Translation and 3-State Outputs
艾睿:
If you are looking for a device to shift between voltage levels in your microprocessor-based circuit, then the SN74AVCH4T245DGVR level translator from Texas Instruments is for you. With a 3-state output, this is power management at its best. This level shifter has an operating temperature range of -40 °C to 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.2 V, while its maximum is 3.6 V.
安富利:
Bus XCVR Dual 4-CH 3-ST 16-Pin TVSOP T/R
Chip1Stop:
Voltage Level Translator 16-Pin TVSOP T/R
Verical:
Voltage Level Translator 4-CH Bidirectional 16-Pin TVSOP T/R
DeviceMart:
IC BUS TRANSCVR 4BIT 16TVSOP
Win Source:
IC TRANSLATION TXRX 3.6V 16TVSOP / Translation Transceiver 2 Element 4 Bit per Element 3-State Output 16-TVSOP
电源电压DC 1.20V ~ 3.60V
输出电流 12.0 mA
电路数 2
通道数 4
位数 2
传送延迟时间 2.90 ns
电压波节 3.30 V, 2.50 V, 1.80 V, 1.50 V, 1.20 V
工作温度Max 85 ℃
工作温度Min -40 ℃
输出通道数 2
电源电压 1.2V ~ 3.6V
安装方式 Surface Mount
引脚数 16

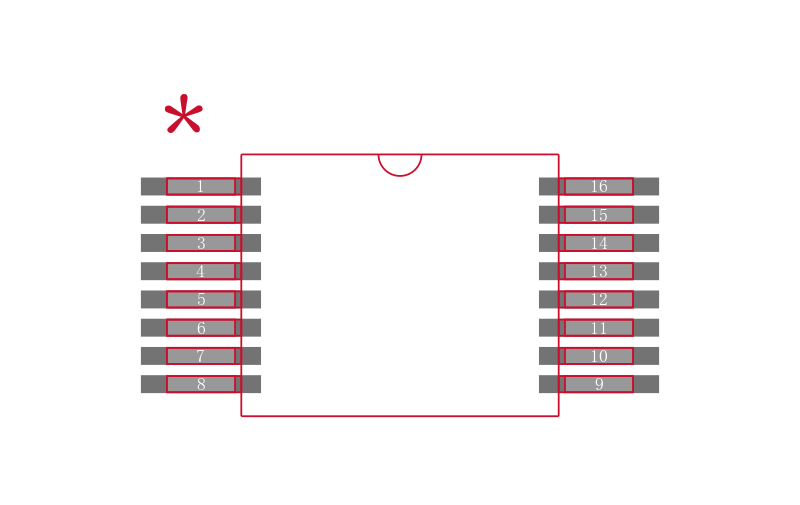

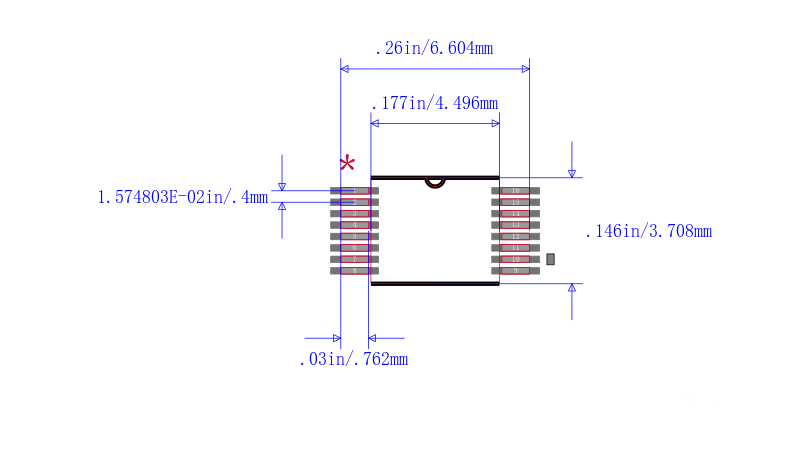

封装 TVSOP-16
封装 TVSOP-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74AVCH4T245DGVR TI 德州仪器 | 当前型号 | 当前型号 |
SN74AVCH4T245DR 德州仪器 | 完全替代 | SN74AVCH4T245DGVR和SN74AVCH4T245DR的区别 |
SN74AVCH4T245D 德州仪器 | 完全替代 | SN74AVCH4T245DGVR和SN74AVCH4T245D的区别 |
74AVCH4T245RGYRG4 德州仪器 | 完全替代 | SN74AVCH4T245DGVR和74AVCH4T245RGYRG4的区别 |
