可配置电压转换和三态输出的4位双电源总线收发器 4-BIT DUAL-SUPPLY BUS TRANSCEIVER WITH CONFIGURABLE VOLTAGE TRANSLATION AND 3-STATE OUTPUTS
The Texas Instruments level translator can control and allow the proper input voltage into your electronic circuits. With a 3-state output, this is power management at its best. This level shifter has a minimum operating temperature of -40 °C and a maximum of 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.2 V, while its maximum is 3.6 V.
电源电压DC 1.20V ~ 3.60V
输出电流 12 mA
电路数 2
通道数 4
位数 2
传送延迟时间 2.90 ns
电压波节 3.30 V, 2.50 V, 1.80 V, 1.50 V, 1.20 V
输入数 4
工作温度Max 85 ℃
工作温度Min -40 ℃
输出通道数 2
电源电压 1.2V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 1.2 V
安装方式 Surface Mount
引脚数 16

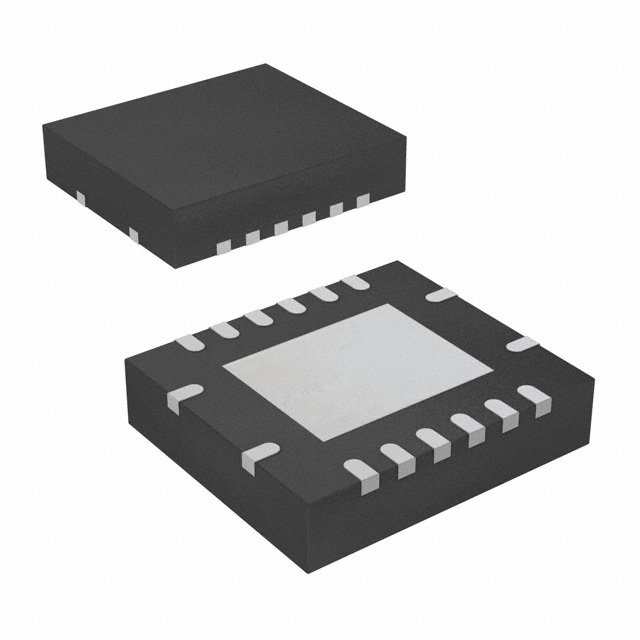

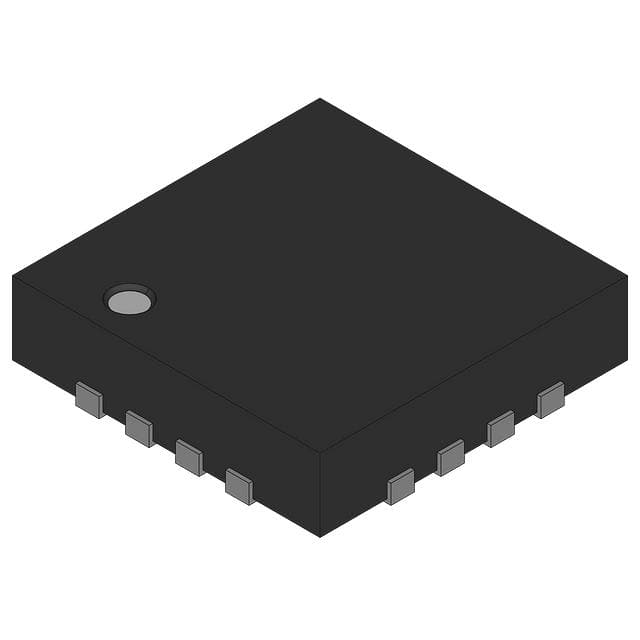

封装 VQFN-16
封装 VQFN-16
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74AVCH4T245RGYR TI 德州仪器 | 当前型号 | 当前型号 |
SN74AVCH4T245PW 德州仪器 | 完全替代 | SN74AVCH4T245RGYR和SN74AVCH4T245PW的区别 |
SN74AVCH4T245RSVR 德州仪器 | 完全替代 | SN74AVCH4T245RGYR和SN74AVCH4T245RSVR的区别 |
SN74AVCH4T245PWT 德州仪器 | 完全替代 | SN74AVCH4T245RGYR和SN74AVCH4T245PWT的区别 |
