同步4位加/减计数器（双时钟有明确的） SYNCHRONOUS 4-BIT UP/DOWN COUNTERS DUAL CLOCK WITH CLEAR
Are you working with a sensitive system with multiple states? Implement this binary counter shift register from Texas Instruments. This counter shift register has a minimum operating temperature of 0 °C and a maximum of 70 °C. This device comes in tube packaging. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.75 V, while its maximum is 5.25 V.
电源电压DC 4.75V ~ 5.25V
输出接口数 4
时钟频率 32 MHz
位数 4
电压波节 5.00 V
输出电流驱动 -50.0 µA
输入数 4
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Through Hole
引脚数 16

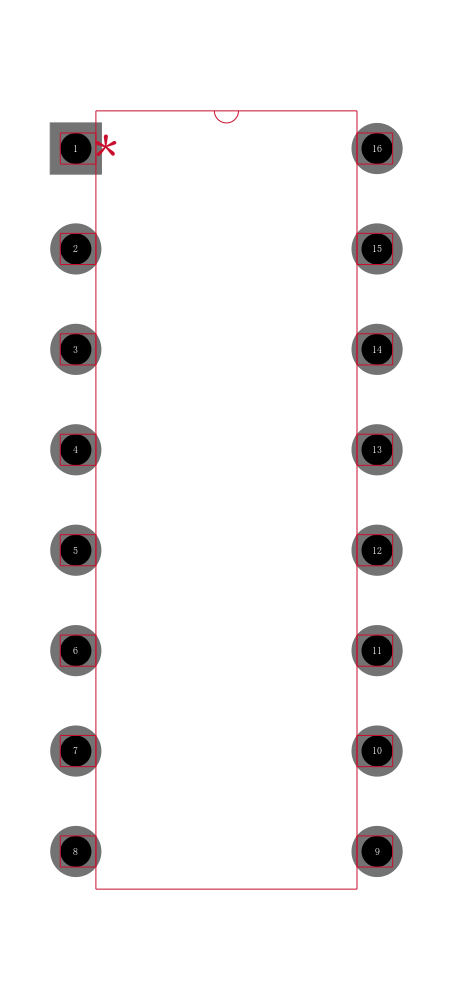

封装 PDIP-16
封装 PDIP-16
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LS193NE4 TI 德州仪器 | 当前型号 | 当前型号 |
SN74LS193D 德州仪器 | 完全替代 | SN74LS193NE4和SN74LS193D的区别 |
SN74LS193N 德州仪器 | 完全替代 | SN74LS193NE4和SN74LS193N的区别 |
SN74LS193J 德州仪器 | 完全替代 | SN74LS193NE4和SN74LS193J的区别 |
