具有清零和预置端的增强型产品双路正边沿触发式 D 型触发器 14-TSSOP -55 to 125
The flip flop device from Texas Instruments is designed specifically to save basic state information within your circuit. It has a differential output signal. This flip flop has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has 2 channels per chip. This inverting/non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V.
输出接口数 1
电路数 2
通道数 2
时钟频率 60 MHz
位数 2
传送延迟时间 345 ns
输入电容 3 pF
输入数 1
工作温度Max 125 ℃
工作温度Min 55 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 14

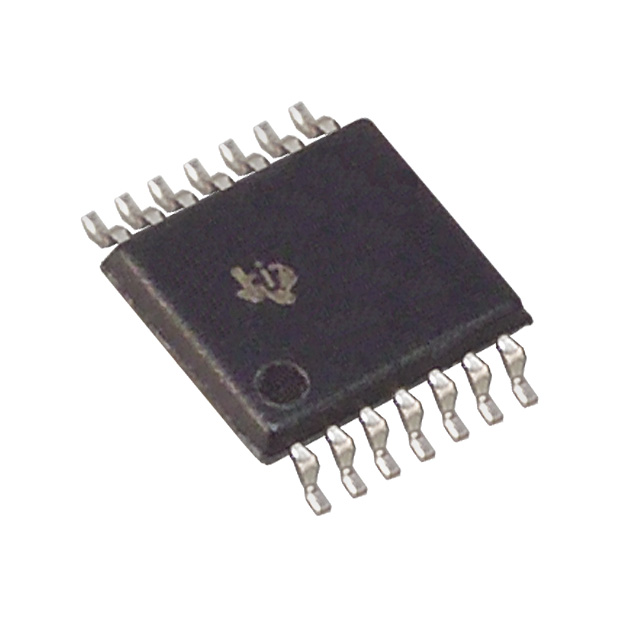

封装 TSSOP-14
长度 5 mm
宽度 4.4 mm
高度 1.15 mm
封装 TSSOP-14
工作温度 -55℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74HC74MPWREP TI 德州仪器 | 当前型号 | 当前型号 |
