ST2329AQTR

没有方向控制引脚2位双电源电平转换器 2-bit dual supply level translator without direction control pin

Description

The ST2329A is a 2-bit dual supply level translator which provides the level shifting capability to allow data transfer in a multi-voltage system. Externally applied voltages, VCCand VL, set the logic levels on either side of the device. It utilizes transmission gate-based design that allows bidirectional level translation without a control pin.

Features

■ 90 Mbps max data rate when driven by a totem pole driver

■ 8 Mbps max data rate when driven by an open drain pole driver

■ Bidirectional level translation without direction control pin

■ Wide VLvoltage range of 1.65 to 3.6 V

■ Wide VCCvoltage range of 1.80 to 5.5 V

■ Power down mode feature – when either supply is off, all I/Os are in high impedance

■ Low quiescent current max 12 µA

■ Able to be driven by totem pole and open drain drivers

■ 5.5 V tolerant enable pin

■ ESD performance on all pins: ±2 kV HBM

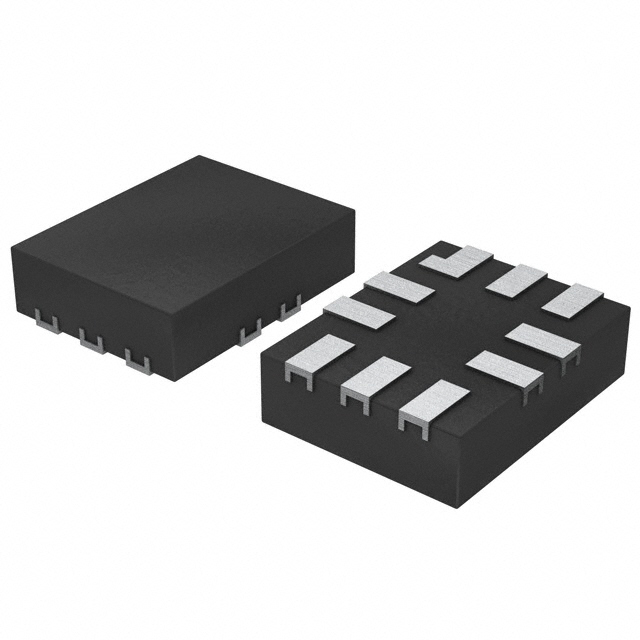

■ Small package and footprint: QFN10L 1.8 x 1.4 mm package

Applications

■ Low voltage system level translation

■ Mobile phones and other mobile devices

■ I2C level translation

■ UART level translation
