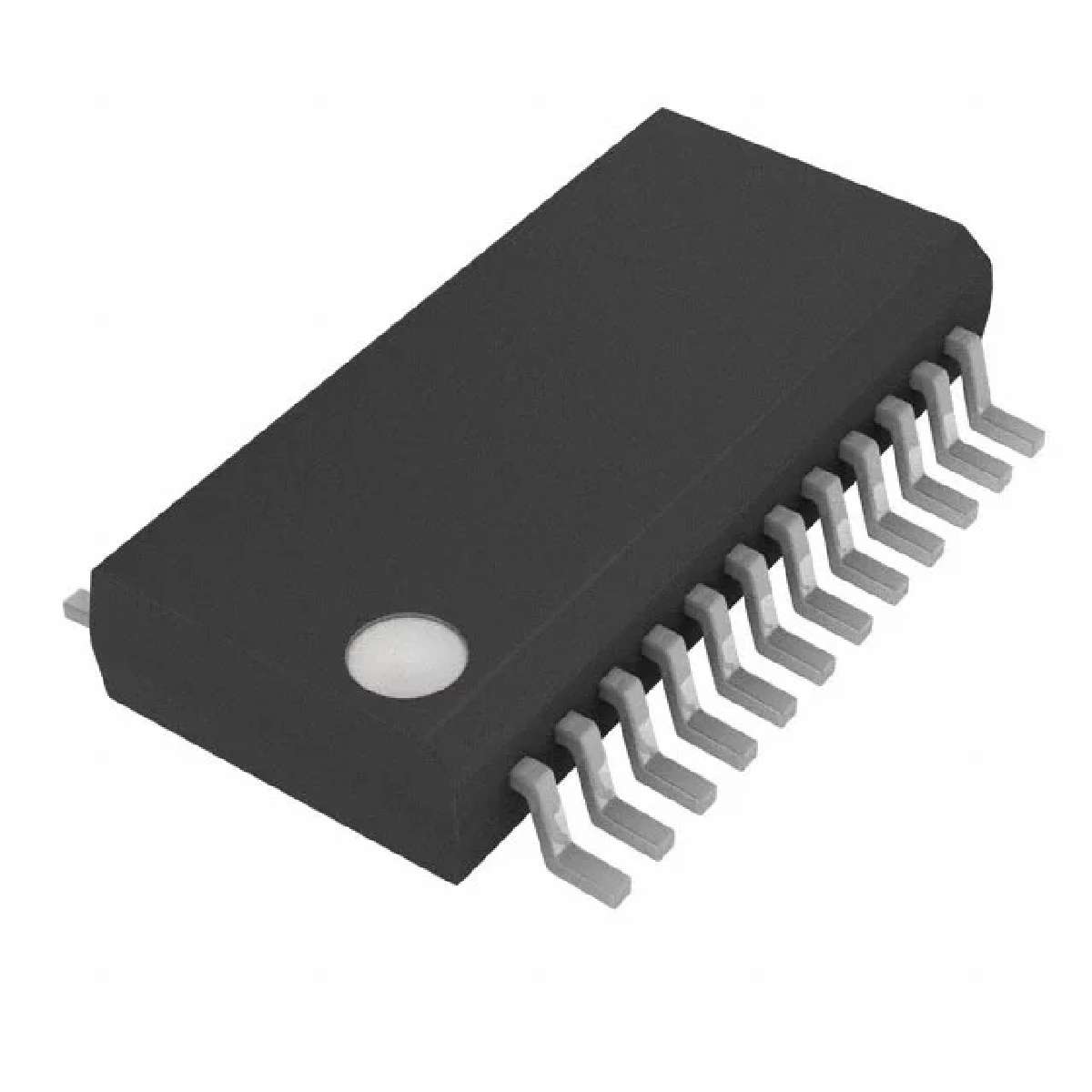

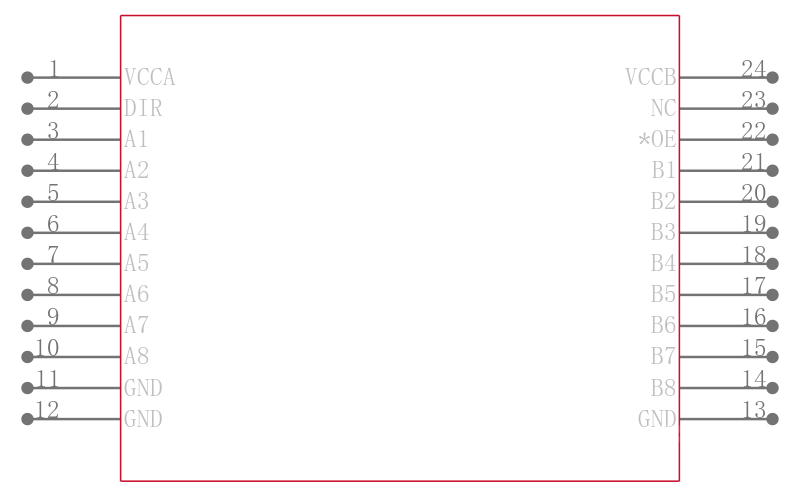

SN74LVCC3245ADBQR

具有可调输出电压和三态输出的八路总线收发器 OCTAL BUS TRANSCEIVER WITH ADJUSTABLE OUTPUT VOLTAGE AND 3-STATE OUTPUTS

Description

The SN74LVCC3245A device is 8-bit octal noninverting bus transceiver contains two separate supply rails. The B port is designed to track VCCB, which accepts voltages from 3 V to 5.5 V, and the A port is designed to track VCCA, which operates at 2.3 V to 3.6 V. This allows for translation from a 3.3-V to a 5-V system environment and vice versa, from a 2.5-V to a 3.3-V system environment and vice versa.

Features

• Bidirectional Voltage Translator

• 2.3 V to 3.6 V on A Port and 3 V to 5.5 V on B Port

• Control Inputs VIH and VIL Levels Are Referenced to VCCA Voltage

• Latch-Up Performance Exceeds 250 mA Per JESD 17

• ESD Protection Exceeds JESD 22

– 2000-V Human Body Model A114-A

– 200-V Machine Model A115-A

– 1000-V Charged-Device Model C101

Applications

• Level translation

• USB

• Interfacing

• Analog and Digital Applications
