STMicroelectronics### 电压电平转换器,STMicroelectronics
,STMicroelectronics
### 电压电平转换器,STMicroelectronics
欧时:

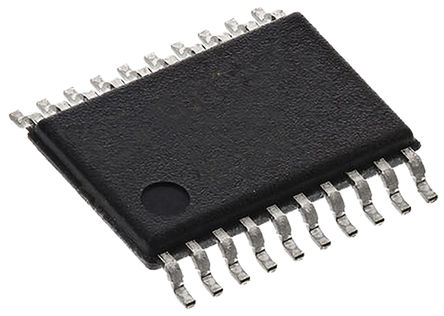

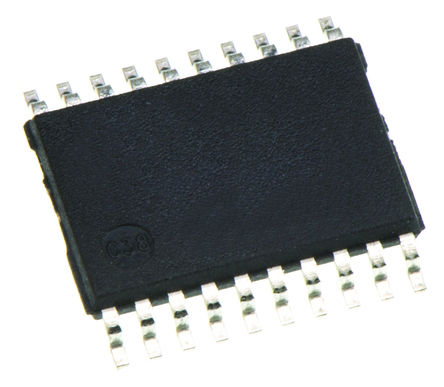

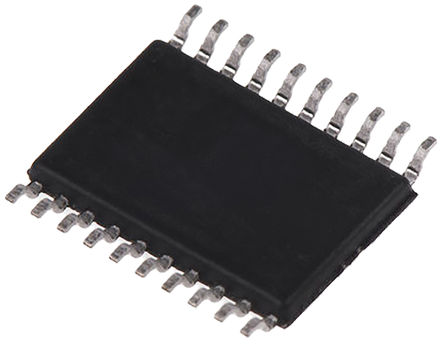

STMicroelectronics ST2378ETTR 逻辑电平转换器, 开路漏极,图腾柱输出, 1.71 → 5.5 V电源, 20引脚
得捷:
IC TRANSLATOR BIDIR 20TSSOP
立创商城:
ST2378ETTR
e络盟:
电平转换器, 8输入, 1.71 V至5.5 V电源, 100 ns延迟, TSSOP-20
艾睿:
If you are looking for a device to shift between voltage levels in your microprocessor-based circuit, then the ST2378ETTR level translator from STMicroelectronics is for you. With an open drain|totem pole output, this is power management at its best. This level shifter has a minimum operating temperature of -40 °C and a maximum of 85 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device has a typical operating supply voltage of 1.8|2.5|3.3|5 V. Its minimum operating supply voltage of 1.71 V, while its maximum is 5.5 V.
安富利:
Voltage Level Translator 20-Pin TSSOP T/R
Chip1Stop:
Voltage Level Translator 20-Pin TSSOP T/R
TME:

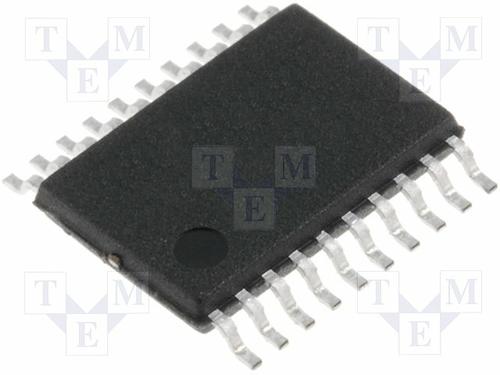

IC: digital; Logic voltage level translator; 1.71÷5.5VDC; SMD
Verical:
Voltage Level Translator 8-CH Bidirectional 20-Pin TSSOP T/R
儒卓力:
**8bit level transl. TSSOP20 SMD **
DeviceMart:
IC XLATOR 8-BIT DUAL ESD 20TSSOP
电源电压DC 1.71V min
输出电流 25.0 mA
电路数 1
通道数 8
针脚数 20
位数 8
数据速率 13.0 Mbps
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
输出通道数 1
电源电压 1.7V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.71 V
安装方式 Surface Mount
引脚数 20
封装 TSSOP-20
长度 6.6 mm
宽度 4.5 mm
高度 1.05 mm
封装 TSSOP-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
