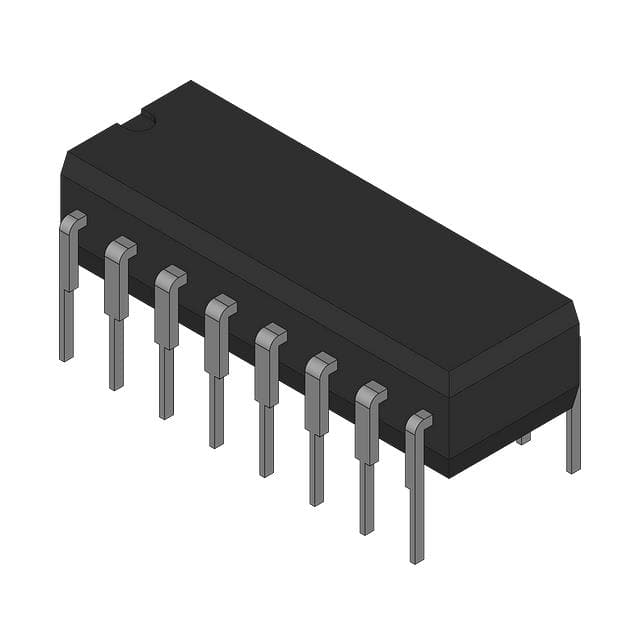

TEXAS INSTRUMENTS SN74ALS109AN 触发器, JK, 16 ns, 50 MHz, 8 mA, DIP, 16 引脚
These devices contain two independent J-K\ positive-edge-triggered flip-flops. A low level at the preset or clear inputs sets or resets the outputs regardless of the levels of the other inputs. When and are inactive high, data at the J and K\ inputs meeting the setup-time requirements are transferred to the outputs on the positive-going edge of the clock CLK pulse. Clock triggering occurs at a voltage level and is not directly related to the rise time of the clock pulse. Following the hold-time interval, data at the J and K\ inputs can be changed without affecting the levels at the outputs. These versatile flip-flops can perform as toggle flip-flops by grounding K\ and tying J high. They also can perform as D-type flip-flops if J and K\ are tied together.
The SN54ALS109A and SN54AS109A are characterized for operation over the full military temperature range of -55°C to 125°C. The SN74ALS109A and SN74AS109A are characterized for operation from 0°C to 70°C.
频率 50 MHz
电源电压DC 4.50V ~ 5.50V
输出接口数 1
输出电流 8 mA
供电电流 11.5 mA
电路数 2
针脚数 16
时钟频率 34 MHz
位数 2
传送延迟时间 18.0 ns
极性 Non-Inverting, Inverting
电压波节 5.00 V
输出电流驱动 -50.0 µA
输入数 2
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Through Hole
引脚数 16
封装 DIP-16
封装 DIP-16
工作温度 0℃ ~ 70℃ TA
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74ALS109AN TI 德州仪器 | 当前型号 | 当前型号 |
SN74ALS109ANSR 德州仪器 | 类似代替 | SN74ALS109AN和SN74ALS109ANSR的区别 |
SN74ALS109ANE4 德州仪器 | 类似代替 | SN74ALS109AN和SN74ALS109ANE4的区别 |
SN74ALS109ADR 德州仪器 | 类似代替 | SN74ALS109AN和SN74ALS109ADR的区别 |
