触发器 16bit w/Tri-St Out
Look no further than Texas Instruments" flip flop device, a great device for storing simple state information. With a 3-state output, this is power management at its best. It has a single-ended output signal. This flip flop has a minimum operating temperature of -40 °C and a maximum of 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This non-inverting device has a typical operating supply voltage of 3.3 V. Its minimum operating supply voltage of 2.7 V, while its maximum is 3.6 V. It has 16 channels per chip.
频率 100 MHz
电源电压DC 3.30 V, 3.60 V max
输出接口数 8
输出电流 24.0 mA
电路数 1
时钟频率 100 MHz
位数 16
极性 Non-Inverting
电压波节 3.30 V, 2.70 V, 2.50 V, 1.80 V
输入电容 3.5 pF
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.7V ~ 3.6V
安装方式 Surface Mount

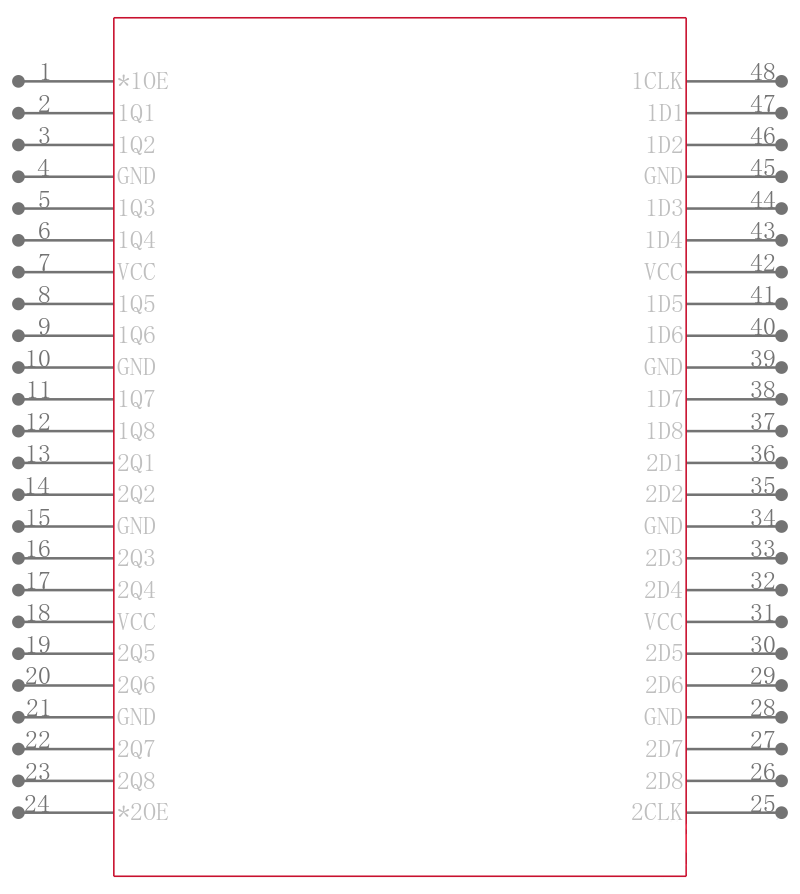

引脚数 48

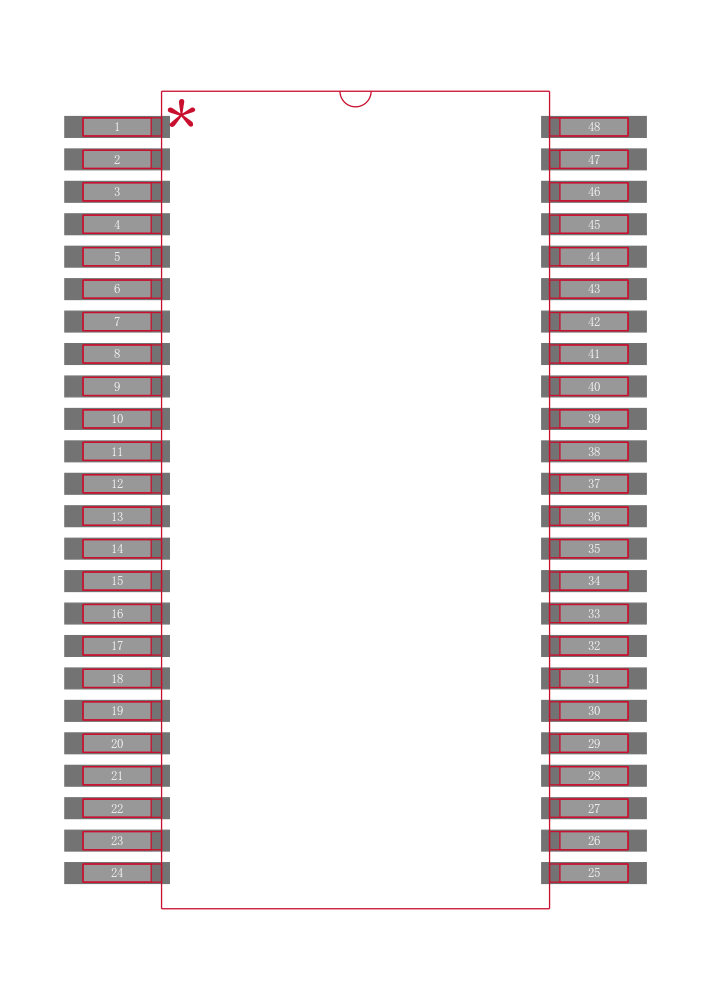

封装 SSOP-48
长度 15.88 mm
宽度 7.49 mm
高度 2.59 mm
封装 SSOP-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LVC16374DLR TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVC16374DGGR 德州仪器 | 完全替代 | SN74LVC16374DLR和SN74LVC16374DGGR的区别 |
SN74LVC16374ADLR 德州仪器 | 类似代替 | SN74LVC16374DLR和SN74LVC16374ADLR的区别 |
SN74LVC16374DL 德州仪器 | 类似代替 | SN74LVC16374DLR和SN74LVC16374DL的区别 |
