16位透明D类锁存器与三态输出 16-BIT TRANSPARENT D-TYPE LATCHES WITH 3-STATE OUTPUTS
This d-type low-level latch manufactured by Texas Instruments contains real time information and can be pushed through it once it is enabled. With a 3-state output, this is power management at its best. This latch has a minimum operating temperature of -40 °C and a maximum of 85 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V. It has 16 channels per chip.
电源电压DC 4.50V ~ 5.50V
输出接口数 16
输出电流 64 mA
电路数 8
通道数 16
位数 16
传送延迟时间 6.70 ns
极性 Non-Inverting
电压波节 5.00 V
静态电流 85 mA
输出电流驱动 -500 µA
输入数 16
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount

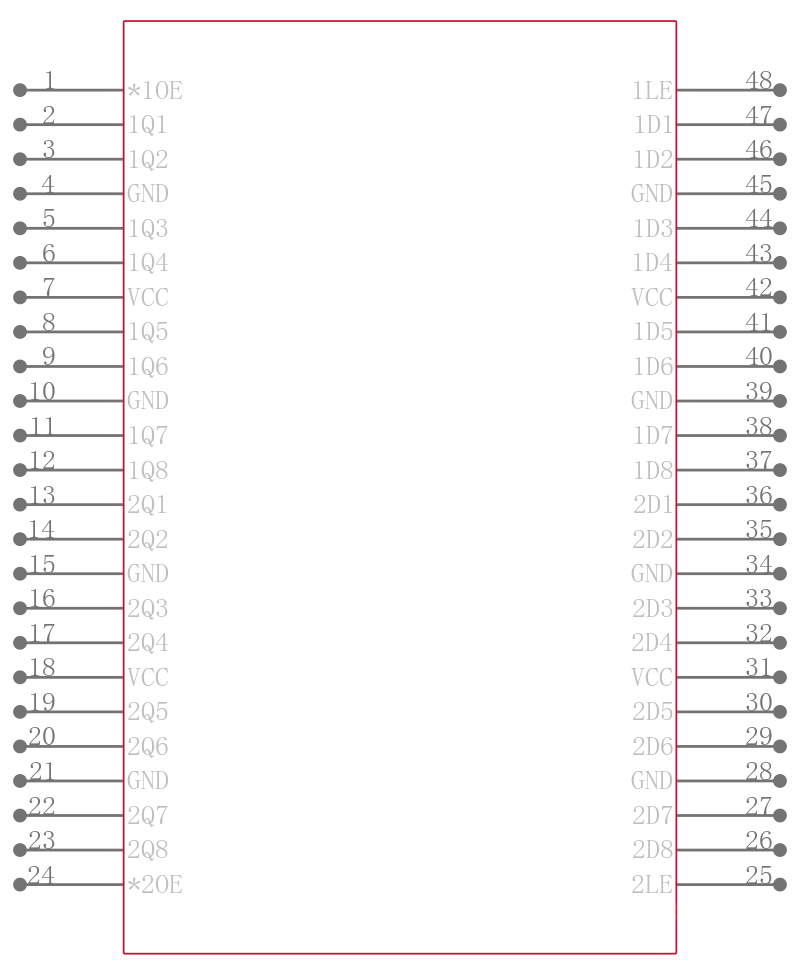

引脚数 48

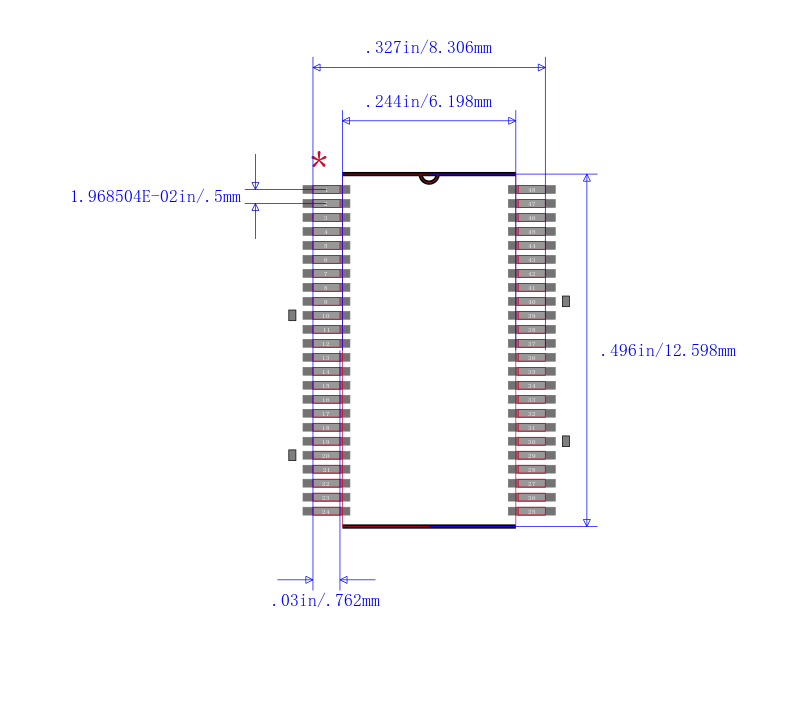

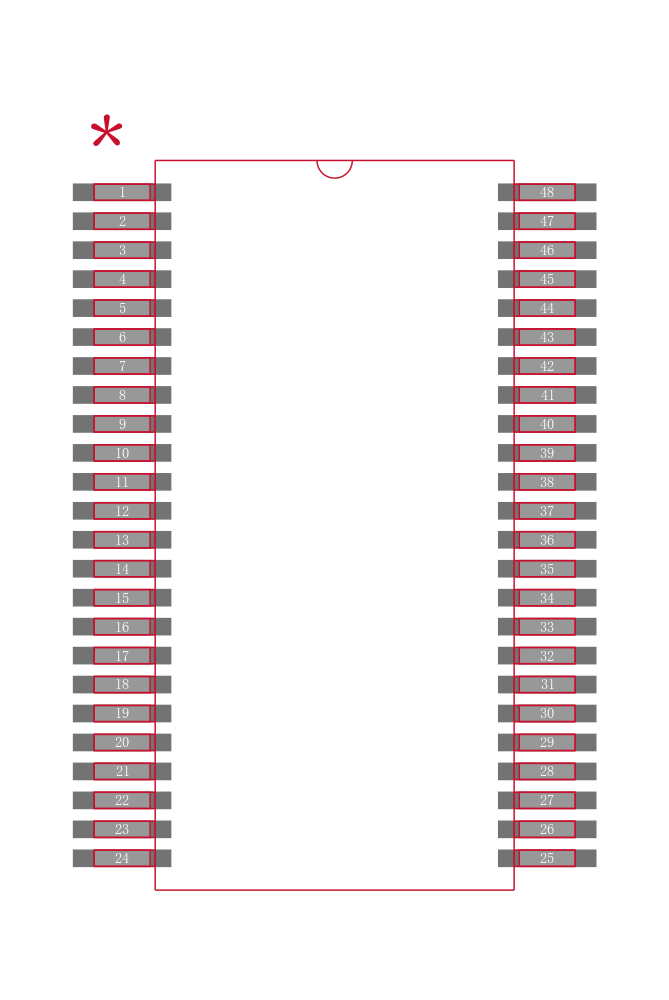

封装 TSSOP-48
长度 12.5 mm
宽度 6.1 mm
高度 1.15 mm
封装 TSSOP-48
重量 0.0035711329652 kg
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74ABT16373ADGGR TI 德州仪器 | 当前型号 | 当前型号 |
SN74ABT16373ADGG 德州仪器 | 完全替代 | SN74ABT16373ADGGR和SN74ABT16373ADGG的区别 |
74ABT16373CMTD 德州仪器 | 功能相似 | SN74ABT16373ADGGR和74ABT16373CMTD的区别 |
