16位边沿触发的D型触发器具有三态输出 16-BIT EDGE-TRIGGERED D-TYPE FLIP-FLOPS WITH 3-STATE OUTPUTS
2 元件 D 型 8 位 正边沿 48-BSSOP(0.295",7.50mm 宽)
得捷:
IC FF D-TYPE DUAL 8BIT 48SSOP
立创商城:
SN74ABT16374ADLR
德州仪器TI:
16-Bit Edge-Triggered D-Type Fflip-Flops With 3-State Outputs
贸泽:
触发器 Tri-State 16bit
艾睿:
Store state information for later use by using the Texas Instruments SN74ABT16374ADLR flip flop device. It has a single-ended output signal. With a 3-state output, this is power management at its best. This flip flop has an operating temperature range of -40 °C to 85 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has 16 channels per chip. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
安富利:
Flip Flop D-Type Bus Interface Pos-Edge 3-ST 2-Element 48-Pin SSOP T/R
Chip1Stop:
Flip Flop D-Type Bus Interface Pos-Edge 3-ST 2-Element 48-Pin SSOP T/R
Verical:
Flip Flop D-Type Bus Interface Pos-Edge 3-ST 2-Element 48-Pin SSOP T/R
Win Source:
IC D-TYPE POS TRG DUAL 48SSOP
频率 150 MHz
电源电压DC 4.50V ~ 5.50V
输出接口数 8
输出电流 64.0 mA
电路数 2
时钟频率 150 MHz
位数 16
传送延迟时间 6.20 ns
极性 Non-Inverting
电压波节 5.00 V
静态电流 72 mA
输入电容 3.5 pF
输出电流驱动 -500 µA
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
安装方式 Surface Mount
引脚数 48

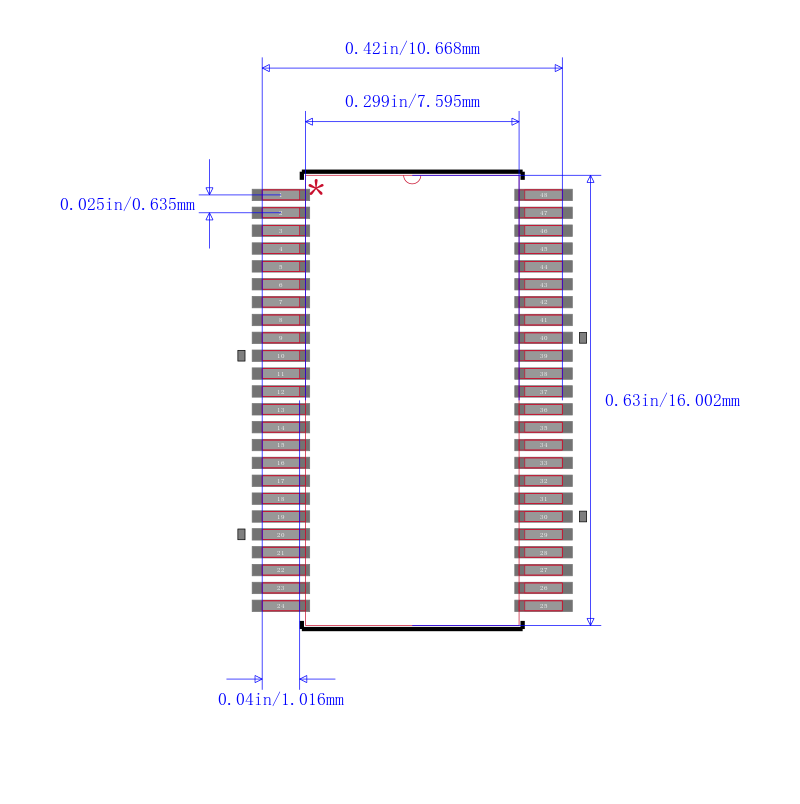

封装 SSOP-48
长度 15.88 mm
宽度 7.49 mm
高度 2.59 mm
封装 SSOP-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74ABT16374ADLR TI 德州仪器 | 当前型号 | 当前型号 |
SN74ABT16374ADLRG4 德州仪器 | 完全替代 | SN74ABT16374ADLR和SN74ABT16374ADLRG4的区别 |
SN74ABT16374ADL 德州仪器 | 类似代替 | SN74ABT16374ADLR和SN74ABT16374ADL的区别 |
SN74ABT16374ADLG4 德州仪器 | 类似代替 | SN74ABT16374ADLR和SN74ABT16374ADLG4的区别 |
