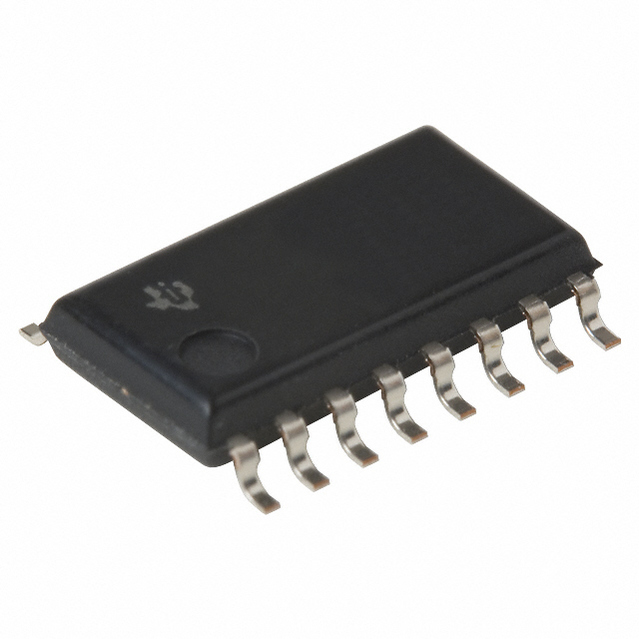

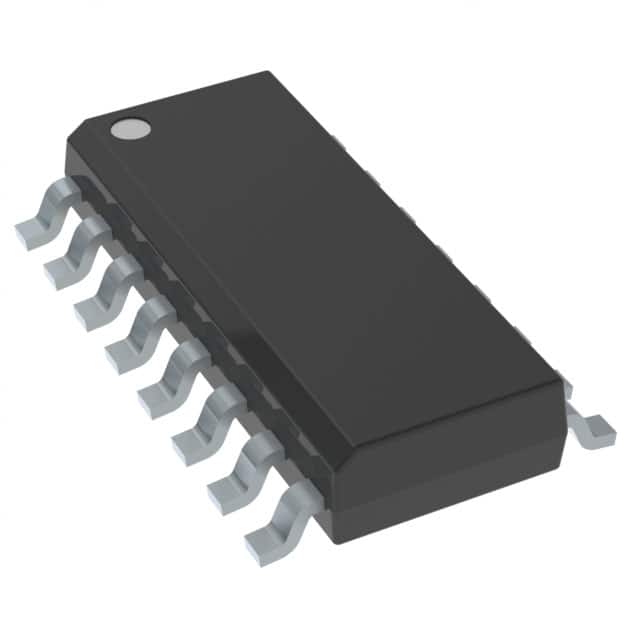

双JK正沿触发触发器具有清零和预设 DUAL J-K POSITIVE-EDGE-TRIGGERED FLIP-FLOPS WITH CLEAR AND PRESET
Are you looking to store information at a basic level? The flip flop device from Texas Instruments can easily save state information. It has a differential output signal. This flip flop has a minimum operating temperature of 0 °C and a maximum of 70 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This inverting/non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V. It has 2 channels per chip.
频率 34 MHz
电源电压DC 4.50V ~ 5.50V
输出接口数 1
输出电流 8.00 mA
电路数 2
通道数 2
时钟频率 34 MHz
位数 2
传送延迟时间 18.0 ns
电压波节 5.00 V
输出电流驱动 -50.0 µA
输入数 2
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount

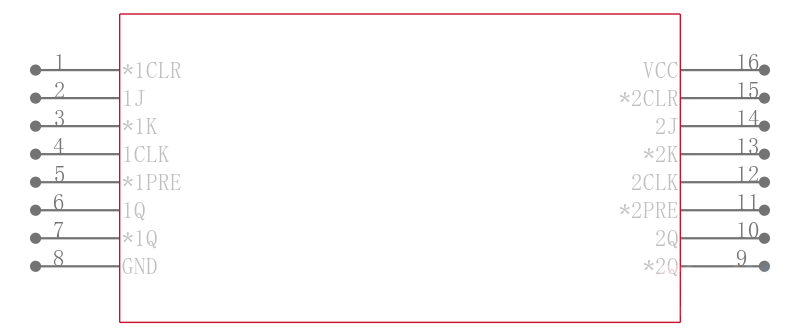

引脚数 16

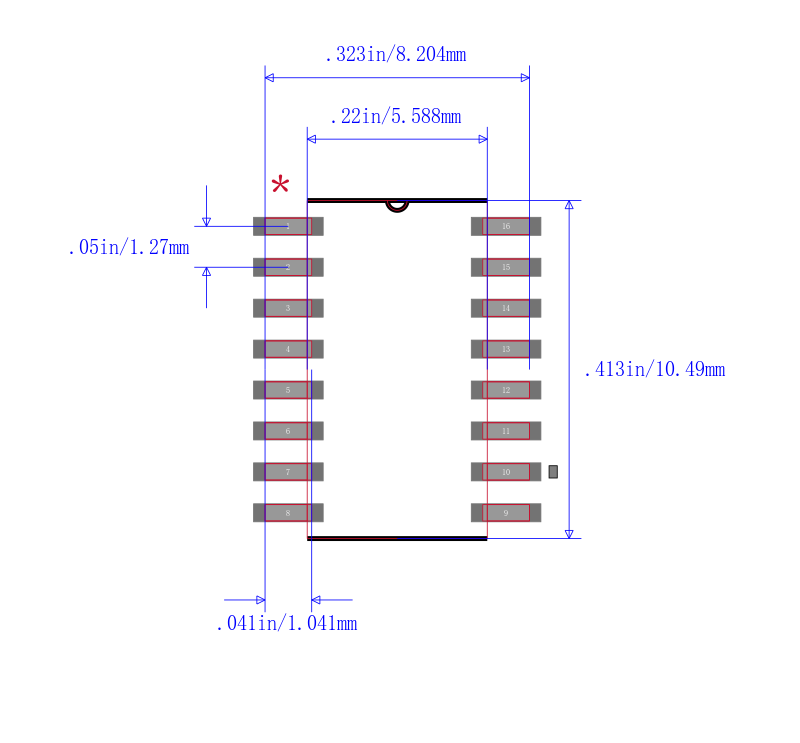

封装 SOP-16
长度 10.3 mm
宽度 5.3 mm
高度 1.95 mm
封装 SOP-16
工作温度 0℃ ~ 70℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74ALS109ANSR TI 德州仪器 | 当前型号 | 当前型号 |
SN74ALS109AN 德州仪器 | 类似代替 | SN74ALS109ANSR和SN74ALS109AN的区别 |
SN74ALS109ANE4 德州仪器 | 类似代替 | SN74ALS109ANSR和SN74ALS109ANE4的区别 |
SN74ALS109ADR 德州仪器 | 类似代替 | SN74ALS109ANSR和SN74ALS109ADR的区别 |
