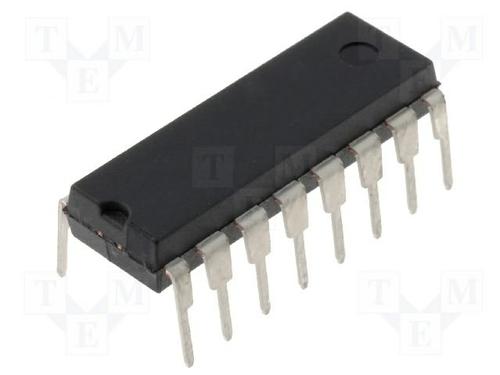

TEXAS INSTRUMENTS SN74LS247N 芯片, 逻辑电路 - 译码器/驱动器
The is a BCD-to-7-segment Decoder/Driver electrically and functionally identical to the SN5447A/SN7447A and has the same pin assignments as their equivalents. It can be used interchangeably in present or future designs to offer designers a choice between two indicator fonts. It has full ripple-blanking input/output controls and a lamp test input. Segment identification and resultant displays are shown below. Display patterns for BCD input counts above 9 are unique symbols to authenticate input conditions. The circuit incorporates automatic leading and/or trailing-edge zero-blanking control RBI\ and RBO\\. Lamp test LT\\ of these types may be performed at any time when the BI\/RBO\ node is at a high level. It contains an overriding blanking input BI which can be used to control the lamp intensity by pulsing or to inhibit the outputs. Inputs and outputs are entirely compatible for use with TTL logic outputs.
电源电压DC 4.75V ~ 5.25V
输出接口数 7
供电电流 7 mA
电路数 1
通道数 1
针脚数 16
位数 7
电压波节 5.00 V
带宽 35 MHz
输出电流驱动 -50.0 µA
输入数 4
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 4.75V ~ 5.25V
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Through Hole
引脚数 16
封装 DIP-16
长度 19.3 mm
宽度 6.35 mm
高度 4.57 mm
封装 DIP-16
重量 0.015227096868 kg
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
制造应用 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
