10位总线接口触发器具有三态输出 10-BIT BUS-INTERFACE FLIP-FLOP WITH 3-STATE OUTPUTS
Store state information by enabling this flip flop device from Texas Instruments. With a 3-state output, this is power management at its best. It has a single-ended output signal. This flip flop has an operating temperature range of -40 °C to 85 °C. This device comes in tube packaging. This non-inverting device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 3.6 V. It has 10 channels per chip.
频率 150 MHz
电源电压DC 2.00V ~ 3.60V
输出接口数 10
输出电流 24.0 mA
电路数 8
时钟频率 150 MHz
位数 10
极性 Non-Inverting
电压波节 3.30 V, 2.70 V, 2.50 V, 1.80 V
输入电容 5 pF
输出电流驱动 -1.00 mA
输入数 10
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 1.65 V
安装方式 Surface Mount

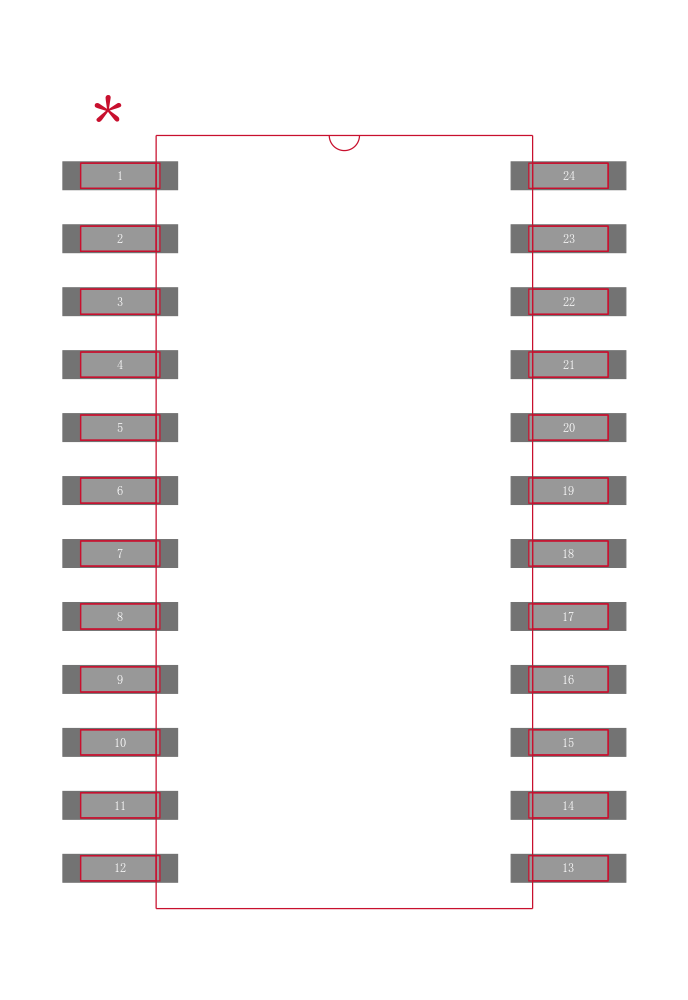

引脚数 24

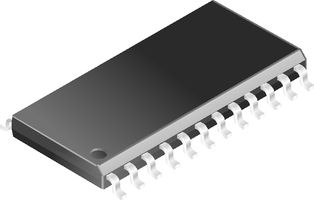

封装 SOIC-24
封装 SOIC-24
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2017/07/07
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LVC821ADW TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVC821APW 德州仪器 | 完全替代 | SN74LVC821ADW和SN74LVC821APW的区别 |
SN74LVC821ADBR 德州仪器 | 完全替代 | SN74LVC821ADW和SN74LVC821ADBR的区别 |
SN74LVC821ADWR 德州仪器 | 完全替代 | SN74LVC821ADW和SN74LVC821ADWR的区别 |
