16位边沿触发的D型触发器具有三态输出 16-BIT EDGE-TRIGGERED D-TYPE FLIP-FLOPS WITH 3-STATE OUTPUTS

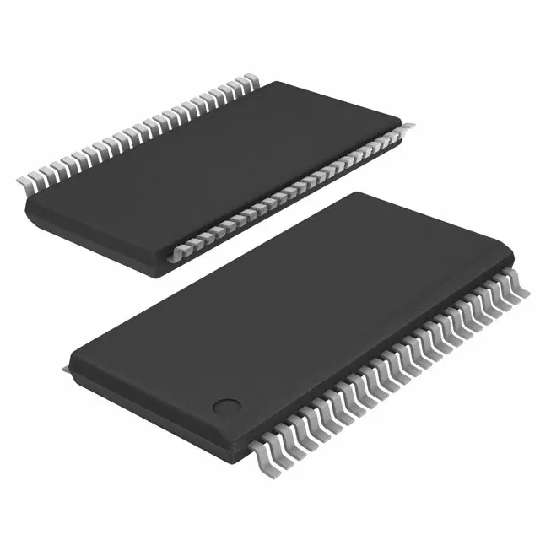

元件 D 型 位 正边沿 48-TFSOP(0.173",4.40mm 宽)
得捷:
IC FF D-TYPE DUAL 8BIT 48TVSOP
立创商城:
SN74AHC16374DGVR
德州仪器TI:
16-Bit Edge-Triggered D-Type Flip-Flops With 3-State Outputs
贸泽:
Flip Flops Tri-State 16bit
艾睿:
Texas Instruments&s; SN74AHC16374DGVR flip flop device will allow you to easily build and test a circuit based on the state information provided. With a 3-state output, this is power management at its best. It has a single-ended output signal. This flip flop has a minimum operating temperature of -40 °C and a maximum of 85 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has 16 channels per chip. This non-inverting device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 5.5 V.
安富利:
Flip Flop D-Type Bus Interface Pos-Edge 3-ST 2-Element 48-Pin TVSOP T/R
Chip1Stop:
Flip Flop D-Type Bus Interface Pos-Edge 3-ST 2-Element 48-Pin TVSOP T/R
Verical:
Flip Flop D-Type Bus Interface Pos-Edge 3-ST 2-Element 48-Pin TVSOP T/R
频率 110 MHz
电源电压DC 2.00V ~ 5.50V
输出接口数 8
输出电流 8.00 mA
电路数 2
通道数 16
时钟频率 120 MHz
位数 16
传送延迟时间 11.5 ns
极性 Non-Inverting
电压波节 5.00 V, 3.30 V
输入电容 2.5 pF
输出电流驱动 -1.00 mA
输入数 8
工作温度Max 85 ℃
工作温度Min 40 ℃
电源电压 2V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 48
封装 TVSOP-48
长度 9.7 mm
宽度 4.4 mm
高度 1.05 mm
封装 TVSOP-48
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74AHC16374DGVR TI 德州仪器 | 当前型号 | 当前型号 |
SN74AHC16374DLR 德州仪器 | 完全替代 | SN74AHC16374DGVR和SN74AHC16374DLR的区别 |
SN74AHC16373DGGR 德州仪器 | 类似代替 | SN74AHC16374DGVR和SN74AHC16373DGGR的区别 |
SN74AHC16373DL 德州仪器 | 类似代替 | SN74AHC16374DGVR和SN74AHC16373DL的区别 |
