3.3 -V ABT 16位透明D类锁存器三态输出 3.3-V ABT 16-BIT TRANSPARENT D-TYPE LATCHES WITH 3-STATE OUTPUTS
This d-type low-level latch from Texas Instruments is a staple for any circuit designer. With a 3-state output, this is power management at its best. This latch has an operating temperature range of -40 °C to 85 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This non-inverting device has a typical operating supply voltage of 3.3 V. Its minimum operating supply voltage of 2.7 V, while its maximum is 3.6 V. It has 16 channels per chip.
输出接口数 16
输出电流 12 mA
电路数 2
通道数 16
位数 16
电压波节 3.30 V, 2.70 V
静态电流 5 mA
输入数 16
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.7V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 48

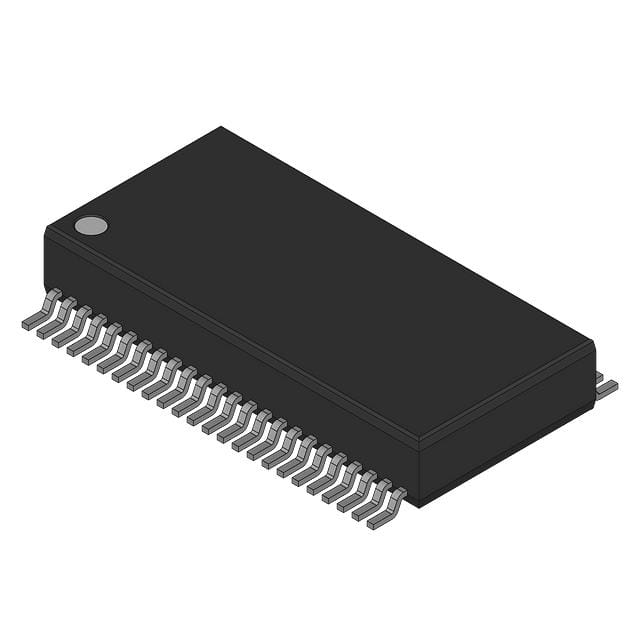

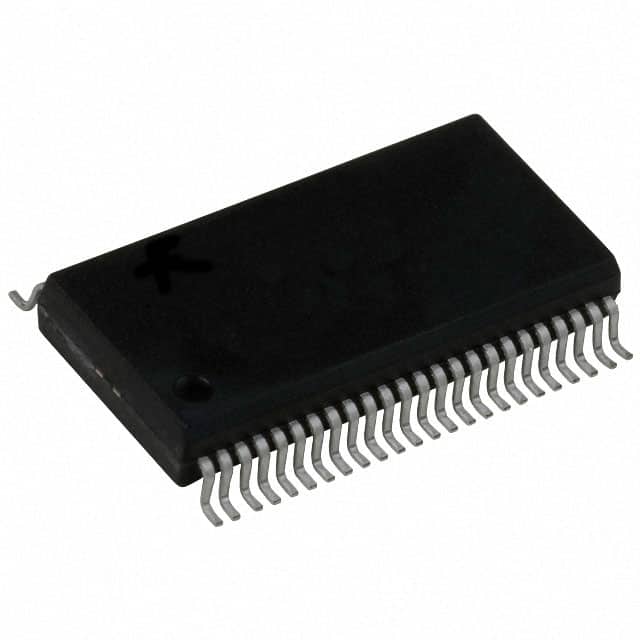

封装 SSOP-48
长度 15.88 mm
宽度 7.49 mm
高度 2.59 mm
封装 SSOP-48
重量 0.00960481907 kg
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LVTH162373DLR TI 德州仪器 | 当前型号 | 当前型号 |
V62/04712-01YE 德州仪器 | 完全替代 | SN74LVTH162373DLR和V62/04712-01YE的区别 |
SN74LVTH16373DLR 德州仪器 | 类似代替 | SN74LVTH162373DLR和SN74LVTH16373DLR的区别 |
SN74LVTH162373DL 德州仪器 | 类似代替 | SN74LVTH162373DLR和SN74LVTH162373DL的区别 |
