2.5 V / 3.3 V 16位透明D类锁存器三态输出 2.5-V/3.3-V 16-BIT TRANSPARENT D-TYPE LATCHES WITH 3-STATE OUTPUTS
This d-type low-level latch from Texas Instruments is a staple for any circuit designer. With a 3-state output, this is power management at its best. This latch has an operating temperature range of -40 °C to 85 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This non-inverting device has a typical operating supply voltage of 2.5|3.3 V. Its minimum operating supply voltage of 2.3 V, while its maximum is 3.6 V. It has 16 channels per chip.
电源电压DC 2.70 V, 3.60 V max
输出接口数 16
输出电流 32 mA
电路数 2
通道数 16
位数 16
极性 Non-Inverting
电压波节 3.30 V, 2.50 V
静态电流 5 mA
输入数 16
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 3.6 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 48

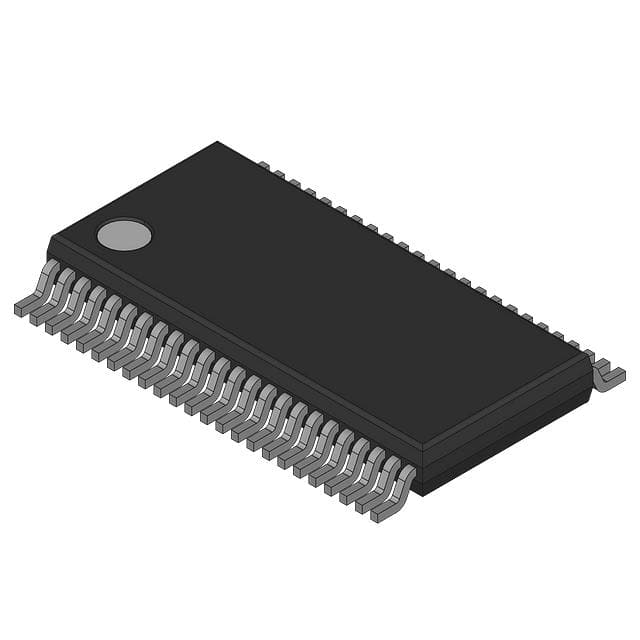

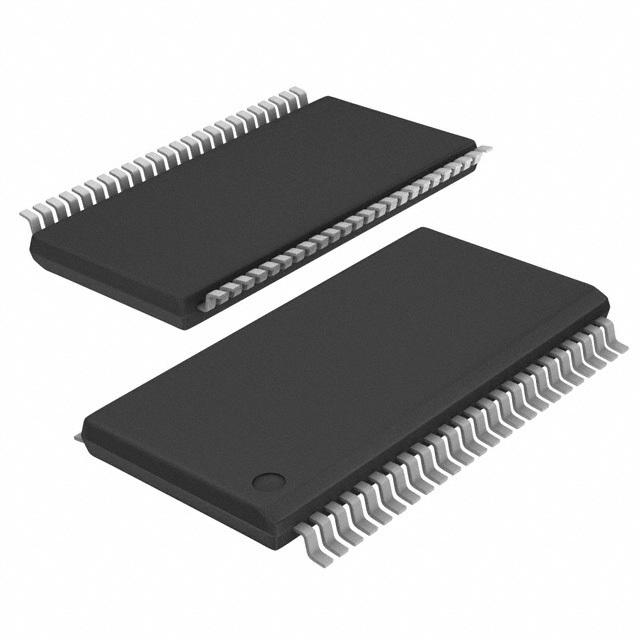

封装 TVSOP-48
长度 9.7 mm
宽度 4.4 mm
高度 1.05 mm
封装 TVSOP-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74ALVTH16373VR TI 德州仪器 | 当前型号 | 当前型号 |
SN74ALVTH16373GR 德州仪器 | 完全替代 | SN74ALVTH16373VR和SN74ALVTH16373GR的区别 |
SN74ALVTH16373DLR 德州仪器 | 类似代替 | SN74ALVTH16373VR和SN74ALVTH16373DLR的区别 |
74ALVTH16373VRG4 德州仪器 | 类似代替 | SN74ALVTH16373VR和74ALVTH16373VRG4的区别 |
