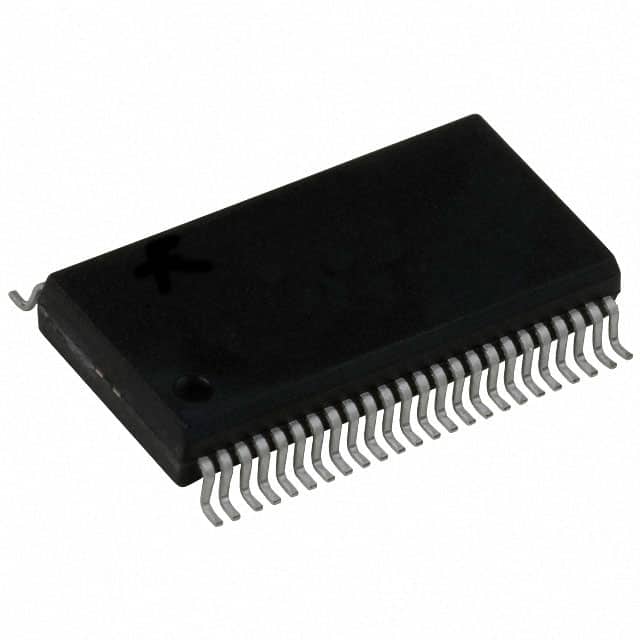

TEXAS INSTRUMENTS SN74LVTH16374DL 触发器, 三态非反相, 正沿, D, 3 ns, 160 MHz, 64 mA, SSOP, 48 引脚
Texas Instruments brings you their latest flip flop device, a simple yet effective method for storing your circuit"s state information. With a 3-state output, this is power management at its best. It has a single-ended output signal. This flip flop has an operating temperature range of -40 °C to 85 °C. This device comes in tube packaging. This non-inverting device has a typical operating supply voltage of 3.3 V. Its minimum operating supply voltage of 2.7 V, while its maximum is 3.6 V. It has 16 channels per chip.
频率 160 MHz
电源电压DC 2.70V ~ 3.60V
输出接口数 8
输出电流 64 mA
电路数 8
针脚数 48
时钟频率 160 MHz
位数 16
极性 Non-Inverting
电压波节 3.30 V, 2.70 V
输入电容 3 pF
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.7V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 48
封装 SSOP-48
宽度 7.49 mm
封装 SSOP-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LVTH16374DL TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVTH16374DLR 德州仪器 | 类似代替 | SN74LVTH16374DL和SN74LVTH16374DLR的区别 |
SN74LVTH16374DLG4 德州仪器 | 类似代替 | SN74LVTH16374DL和SN74LVTH16374DLG4的区别 |
74LVTH16374DLRG4 德州仪器 | 类似代替 | SN74LVTH16374DL和74LVTH16374DLRG4的区别 |
