TEXAS INSTRUMENTS SN74LVC2T45MDCTTEP 芯片, 收发器与电平转换器, 2位, SSOP-8
If you are looking for a device to shift between voltage levels in your microprocessor-based circuit, then the level translator from Texas Instruments is for you. With a 3-state output, this is power management at its best. This level shifter has an operating temperature range of -55 °C to 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device has a typical operating supply voltage of 1.8|2.5|3.3|5 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 5.5 V.
电源电压DC 1.65V ~ 5.50V
输出电流 32 mA
电路数 1
通道数 2
针脚数 8
位数 2
传送延迟时间 7.90 ns
电压波节 1.80 V, 2.50 V, 3.30 V, 5.00 V
输入数 2
工作温度Max 125 ℃
工作温度Min -55 ℃
输出通道数 1
电源电压 1.65V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 8

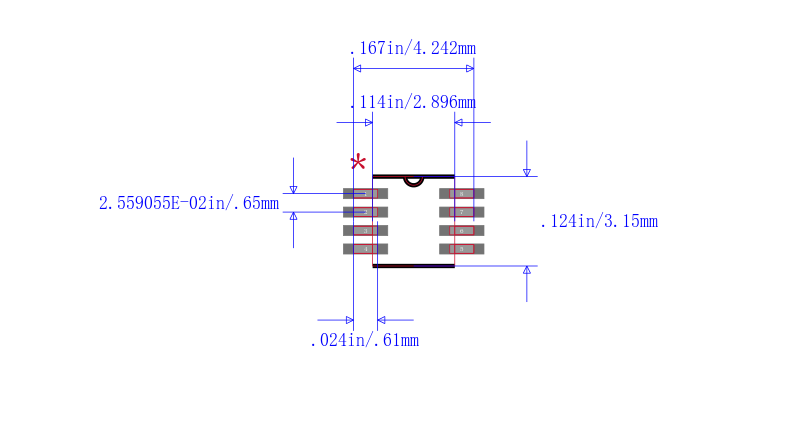

封装 SSOP-8
封装 SSOP-8
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LVC2T45MDCTTEP TI 德州仪器 | 当前型号 | 当前型号 |
V62/09604-01XE 德州仪器 | 完全替代 | SN74LVC2T45MDCTTEP和V62/09604-01XE的区别 |
SN74LVC2T45QDCURQ1 德州仪器 | 类似代替 | SN74LVC2T45MDCTTEP和SN74LVC2T45QDCURQ1的区别 |
