八D型边沿触发触发器具有三态输出 OCTAL D-TYPE EDGE-TRIGGERED FLIP-FLOPS WITH 3-STATE OUTPUTS
Thanks to Texas Instruments and their flip flop device, you can ensure that your state information is saved and available for later use. It has a single-ended output signal. With a 3-state output, this is power management at its best. This flip flop has an operating temperature range of -40 °C to 85 °C. This device comes in tube packaging. This inverting device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V. It has 8 channels per chip.
频率 85 MHz
电源电压DC 2.00V ~ 6.00V
输出接口数 8
输出电流 24.0 mA
电路数 8
时钟频率 95 MHz
位数 8
传送延迟时间 11.5 ns
电压波节 5.00 V, 3.30 V
输入电容 4.5 pF
输出电流驱动 -1.00 mA
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount

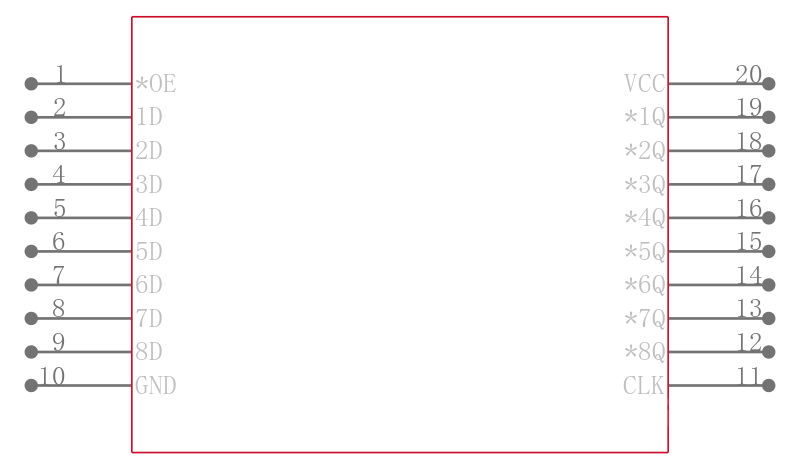

引脚数 20

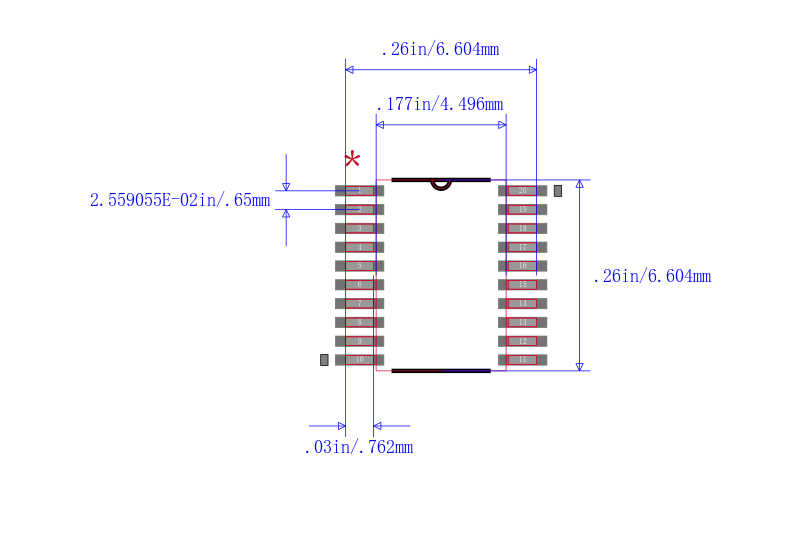

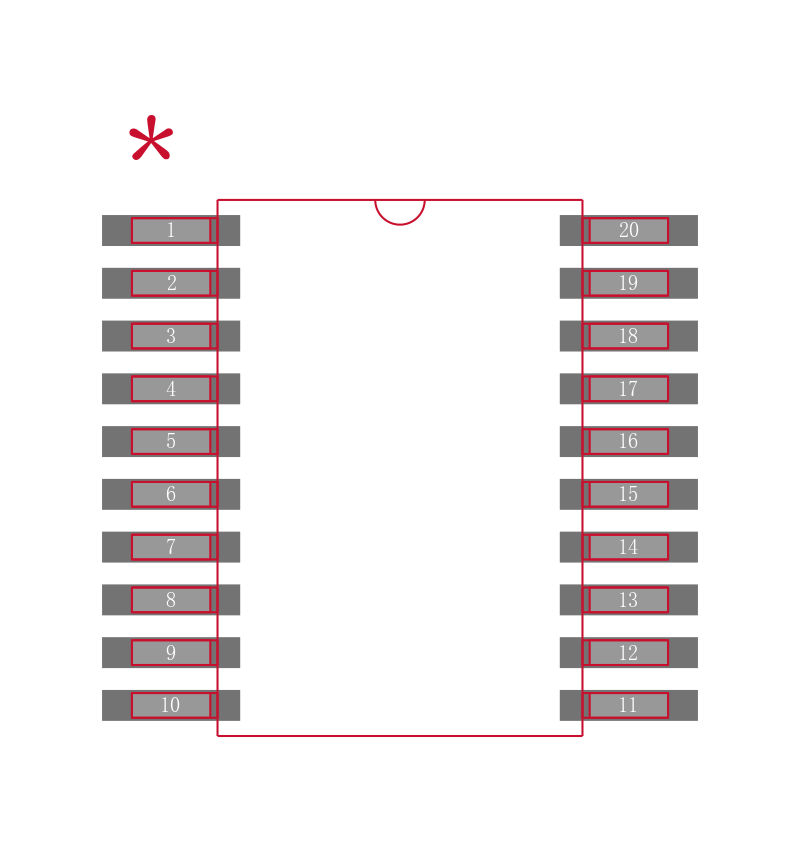

封装 TSSOP-20
封装 TSSOP-20
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74AC564PW TI 德州仪器 | 当前型号 | 当前型号 |
SN74AC564PWR 德州仪器 | 完全替代 | SN74AC564PW和SN74AC564PWR的区别 |
SN74AC564PWLE 德州仪器 | 完全替代 | SN74AC564PW和SN74AC564PWLE的区别 |
SN74AC564PWRG4 德州仪器 | 类似代替 | SN74AC564PW和SN74AC564PWRG4的区别 |
